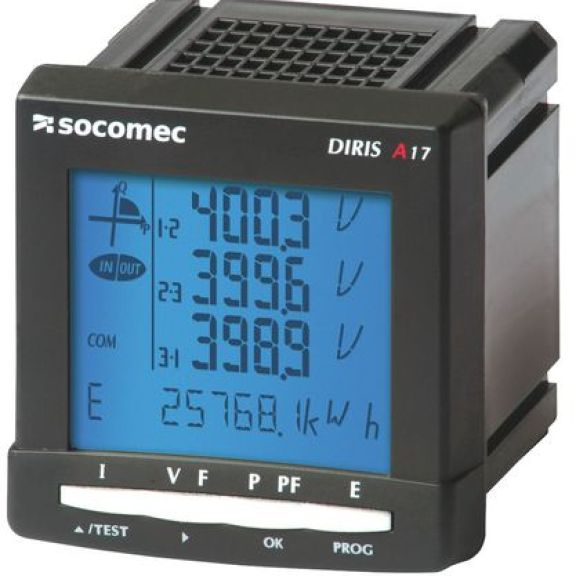

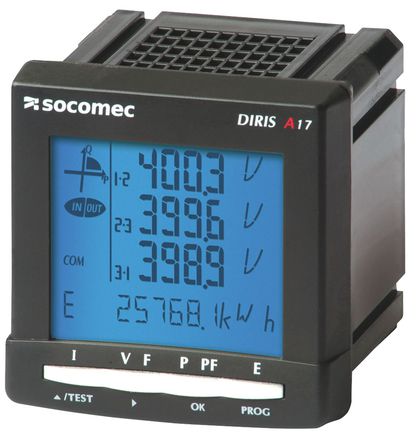

Socomec Diris A17 Three Phase Multi-function meter with Pulse output (4825-0101)

  • Back-lit LCD screen
  • Direct access keys
  • Multi-measurement and metering (currents, voltages, frequency, power)
  • Easy integration into any type of electrical cabinet
  • RS485 Modbus comms
  • Communication function allows analysis of data collected via a PL
Enquire Now

Product Details

The DIRIS A17 is a three phase multi-function meter specially adapted for monitoring and managing electrical energy. Its communication function allows the analysis of data collected via a PLC or energy management software.

Functions
The DIRIS A17 includes a programmable input and output as standard on all versions: input/output functions include pulse metering, alarm report and Pulse output.

Three models of A17 are available: Pulse output - 4825-0101 (Modbus RS485 - 4825-0102 and Modbus RS485 + THD - 4825-0103)

Product Specification

Current measurement (TRMS)

  • Via CT primary 9 999 A
  • Via CT secondary 1 or 5 A
  • Measurement range 0- 11 kA
  • Input consumption 0.6 VA
  • Measurement updating period 1 s
  • Accuracy at 50 Hz 0.5 %
  • Accuracy at 60 Hz 1 %
  • Permanent overload 6 A
  • Intermittent overload 10 In for 1 s

Voltage measurements (TRMS)

  • Direct measurement between phases- 69-690 VAC
  • Direct measurement between phase and neutral- 40- 400 VAC
  • VT primary- 400, 000 VAC
  • VT secondary- 60, 100, 110, 173, 190 VAC
  • Input consumption - <0.1 VA
  • Measurement updating period - 1 s
  • Accuracy at 50 Hz - 0.5 %
  • Accuracy at 60 Hz - 1 %
  • Permanent overload - 800 VAC

Energy accuracy

  • Active (according to IEC 62053-21) at 50 Hz - Class 1
  • Active (according to IEC 62053-21) at 60 Hz - Class 2
  • Reactive (according to IEC 62053-23) - Class 2

Auxiliary power supply

  • Alternating voltage 220- 277 VAC
  • AC tolerance - ± 15 %
  • Frequency - 50 / 60 Hz
  • Consumption - 3 VA

Communication

  • Link - RS485
  • Type 2/3 half duplex wires
  • Protocol - MODBUS® RTU
  • MODBUS® speed – 1200- 38400 bauds
  • MODBUS® speed – 1200- 38400 bauds

Housing

  • Dimensions: 72x72mm (Panel Mount)
