Hobut 20 Series (208) Moulded Case Current Transformers (61mm diameter, 400A to 2000A)

Product Details

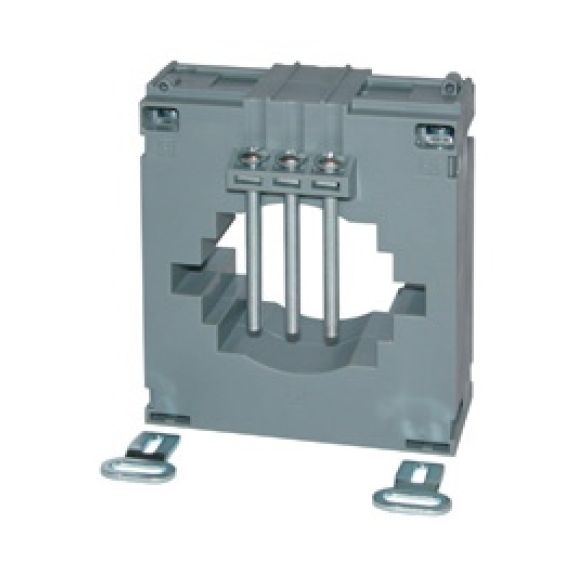

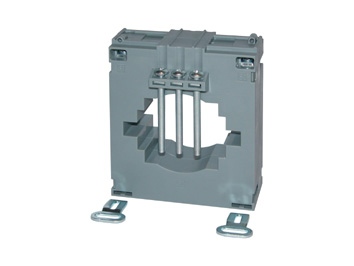

The CT’s are low cost Moulded-case Current Transformers suitable for Primary Currents from 400A to 2000A with built-in sealable terminal covers.

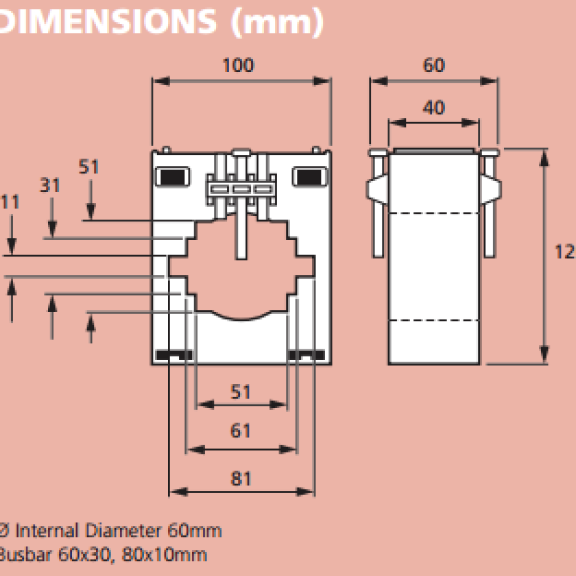

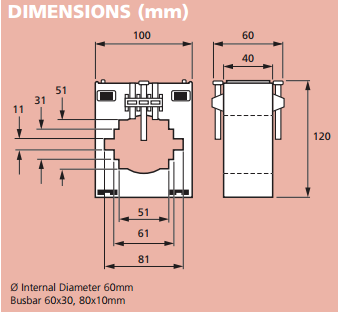

208 Current Transformers can be built to either a 5A or 1A standard secondary (1A upon request) using up to 62x32mm or 82x11mm busbars or cables up to 61mm diameter.

CT208 models

• 400:5A
• 500:5A
• 600:5A
• 800:5A
• 1000:5A
• 1200:5A
• 1250:5A
• 1500:5A
• 1600:5A
• 2000:5A

Product Specification

• Conforms to: IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
• Rated system voltage: 0.72/3kV.
• Ambient temperature range: -30°C to 40°C.
• Continuous Current: 1.2 x rated current

Product Downloads

• Hobut 208 series Datasheet (0.07MB)
