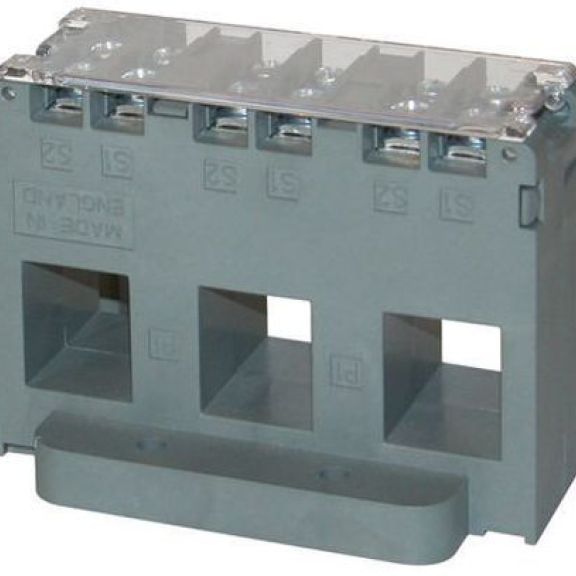

Hobut CT105F 3 Phase Current Transformer range

  • Aperture: 21mm (For Busbars or Cable)
  • Accuracy: Class 1
  • VA Rating: 2.5VA
  • Input: 100 - 250A
  • Output: 5A
Enquire Now

Product Details

The CT105 3 Phase Current Transformers are suitable for primary ranges from 100A - 250A with 5A secondary (Supplied with terminal cover and fixings).

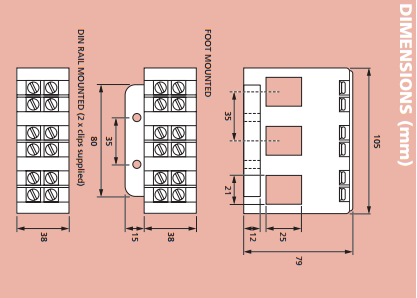

The products have an overall width of 105mm allowing installation directly on top of moulded case circuit breaker (Foot-mount).

CT105F Models:

  • 100:5A (2.5VA)
  • 125:5A (2.5VA)
  • 150:5A (2.5VA)
  • 200:5A (2.5VA)
  • 250:5A (2.5VA)

Product Specification

• Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1.
• Rated system voltage 0.72/3kV.
 • Ambient temperature range -30°C to 80°C.
 • Frequency range 50-60Hz.
• Insulation level 3kV for 1 minute.
 • Continuous current 1.2 x rated current.
