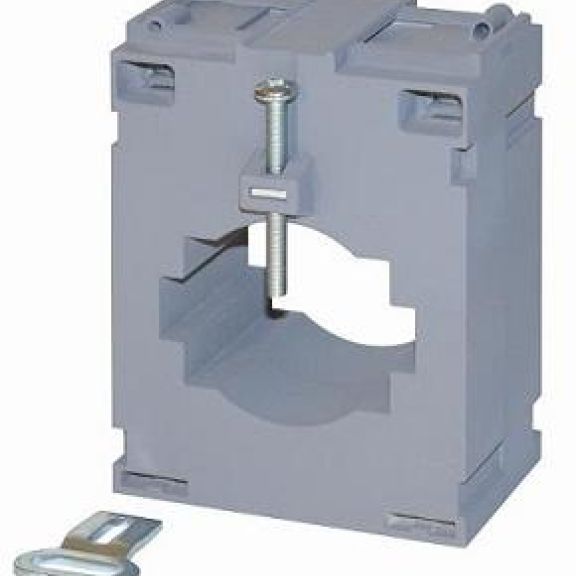

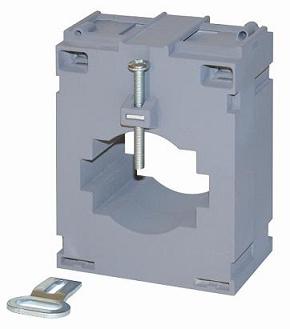

Hobut 17 Series (175) Moulded Case Current Transformers (40mm diameter, 250A to 1250A)

  • Accuracy: Class 1
  • DIN-Rail mounting clip supplied
  • Built-in sealable terminal covers
  • Mounting feet supplied
Enquire Now

Product Details

The CT’s are low cost Moulded-case Current Transformers suitable for Primary Currents from 250A to 1250A with built-in sealable terminal covers.

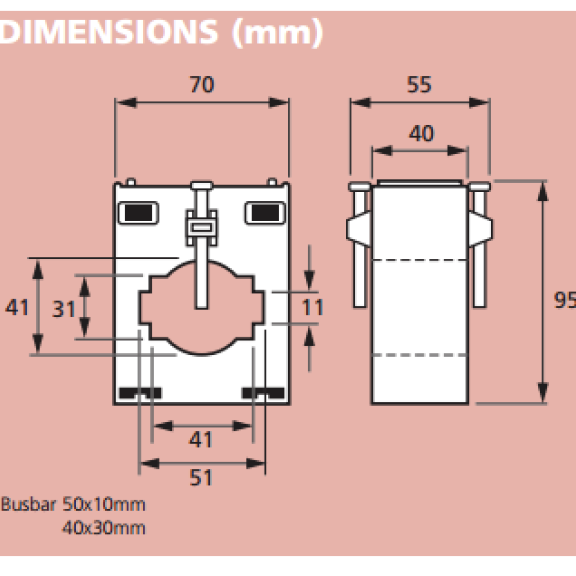

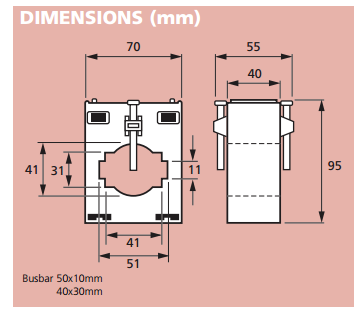

175 Current Transformers can be built to either a 5A or 1A standard secondary (1A upon request) using up to 50x10mm or 40x30mm busbars or cables up to 40mm diameter

CT175 models:

  • 250:5A
  • 300:5A
  • 400:5A
  • 500:5A
  • 600:5A
  • 750:5A
  • 800:5A
  • 1000:5A
  • 1200:5A
  • 1250:5A

Product Specification

• Conforms to IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
• Rated system voltage 0.72/3kV.
• Ambient temperature range -30°C to 40°C.
• Continuous current, 1.2 x rated current.
