A1140-DC available @ £70.00 Each Net from stock - enquire now for next day delivery

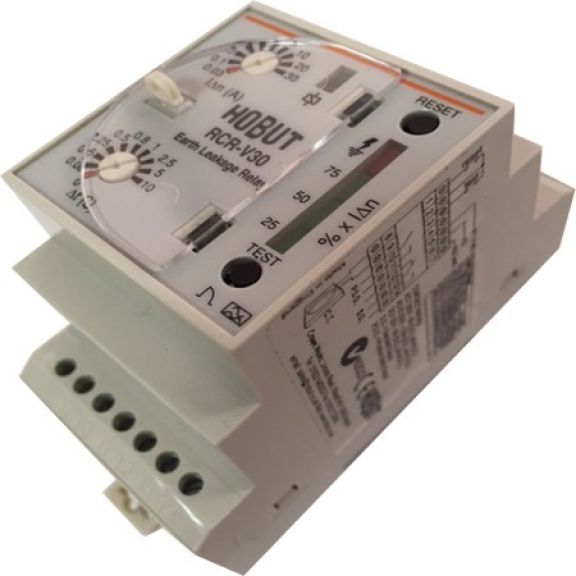

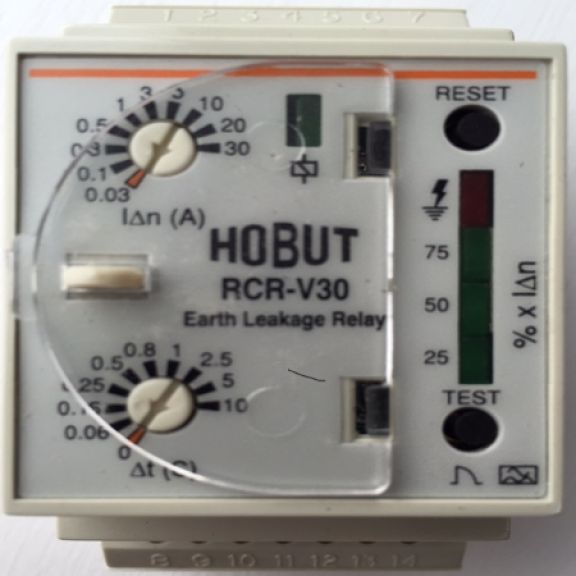

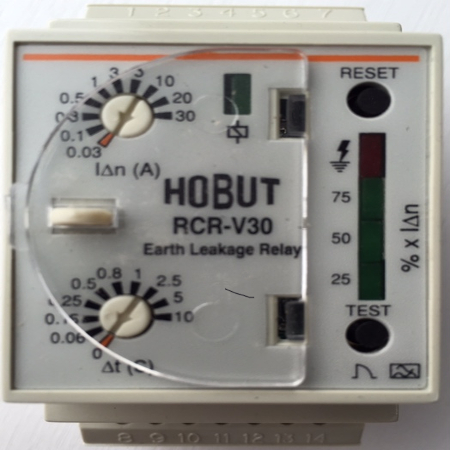

Hobut RCR-V30 Earth Leakage Relay for Single or Three phase systems

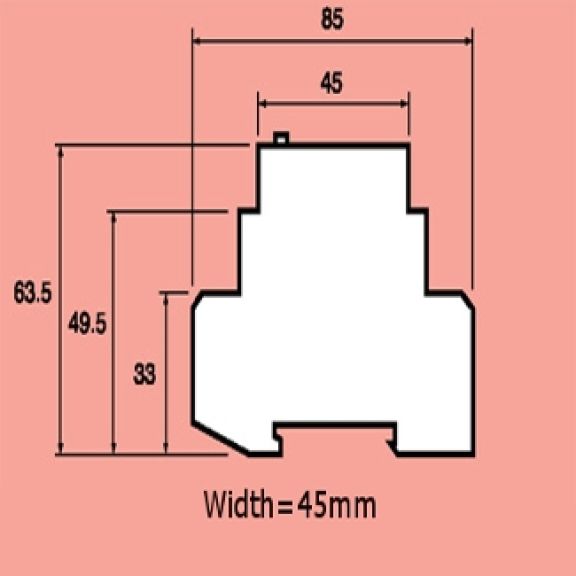

  • Dimensions: 35mm DIN-Rail
  • Power Consumption: 6VA
  • Voltage: 110:230V AC, 10:60V DC or 400V AC (Depending on model)
  • Terminal Protection: IP20
  • Sensitivity: 30mA - 30A
  • Time Delay: 0-10 Second
Enquire Now

Product Details

The Hobut RCR-V30 Earth Leakage Relay monitors 3 phase electrical systems in a compact 35mm DIN-Rail casing. Relays can also be triggered in association with the unit, allowing alarms and shut downs under fault conditions.

Product Specification

  • Supply Voltage (Un): 24, 115/230, 400V AC (85-115%) 12-125V DC (85-110%) 10-60V DC(90-110%)
  • Power Consumption: 6VA
  • Ambient Temperature: -20 to +55°C
  • Relative Humidity: +95%
  • Housing: UL94VO
  • Flame Retardant
  • Weight: 200g
  • Mounting: 35mm Din Rail
  • Terminal Conductor: ≤ 2.5mm2 stranded ≤ 4mm2 solid
  • Output: 1 x SPNO relay 1 x SPDT relay
  • Terminal Protection: IP20
  • Approvals: IEC60755,60947,62020,61543
  • N.B. 210mm toroids should not be used for sensitivity settings of less than 300mA
