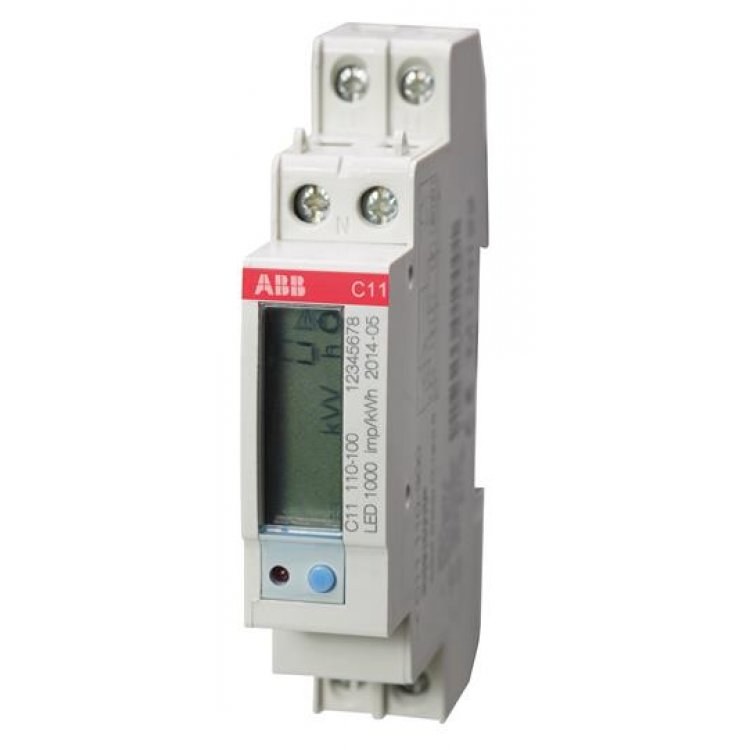

ABB C11 110-100 MID Single phase 40A Direct Connected with Pulse output (2CMA100014R1000)

  • Connection: Single phase
  • Whole Current (40A Max)
  • Dimensions: 1 DIN
  • MID Approved
  • Pulse and Alarm functions
Enquire Now

Product Details

The EQ meters C11 is a compact meter for single phase connection.

The ABB C11 is mounted on a DIN rail and is suitable for installation in distribution boards and small consumer units. The C11 is suitable for numerous applications.

Product Specification

  • Class: Steel
  • Dimensions: 17.5mm, 111mm and 65mm (1 DIN)
  • Direct Connection: Single phase 40A
  • Output: 2 - 100mA
  • Accuracy Class: B (1%)
  • MID Approved
  • Pulse output or alarm output
  • IP20 Protection
  • Standards to: IEC 62052-11, IEC 62053-21, EN 50470-1, EN 50470-3
