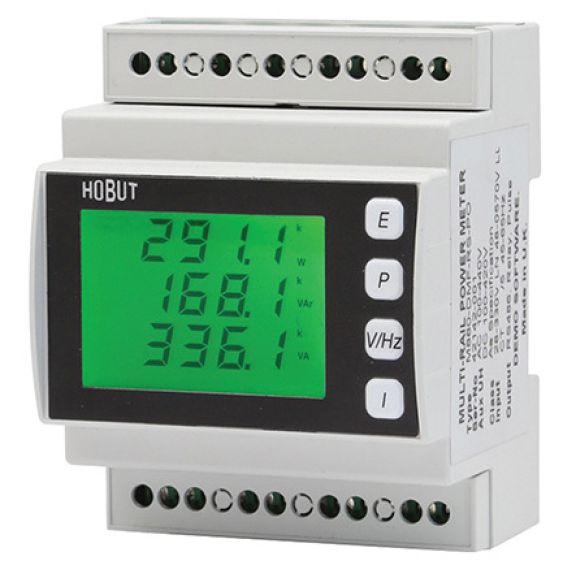

Hobut M880 DIN-Rail Power Meter
- Compact Design (4-Modules wide)
- Large LCD Display with selectable screen colour
- Single or Three Phase applications
- AC 100-440V or DC Auxiliary 100-420V as standard
- Parameters include: THD Current up to 31st, Active power per-phase, Four Quadrant Energy and Maximum Demand for Active, Reactive and Apparent Power
- Modbus RTU (RS-PO Version)
- Set-point Relay which can be assigned to 8 different measurements
- Security Code access for programming
Product Details
Howard Butlers new M880 DIN-Rail Power meter is now available at Camax ex-stock! The M880 provides a cost-effective compact solution, ideal for both commerical and industrial applications with Single or Three Phase functionality.
Set-point Relay
The relay output can be programmed to be used as a pulsed output or instead as a set point relay.
When used as a set point relay:-
• up to 8 parameters can be assigned to the relay
• whichever parameter reaches the set point will cause the relay to trip
Relay Mode: can be set to over, under or window mode
Trip: can be set from 1% to 250% of input
Reset (differential): can be adjusted from 1% to 250% of input
Group Logic: can be set to 1, 2 or 3 phases or the sum or the average
Time Delay: can be programmed from 1 to 1800 seconds
Colour: LCD backlight can be set to change colour when relay as tripped
Relay State: can be programmed to energise on trip or de-energise on trip
Product Specification
Measured parameters:

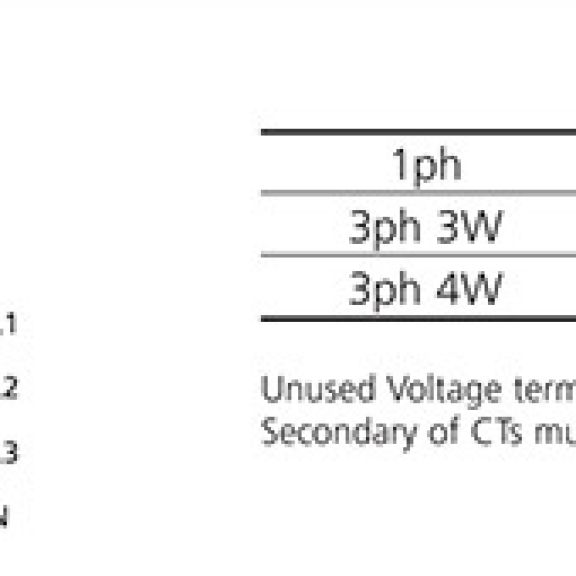

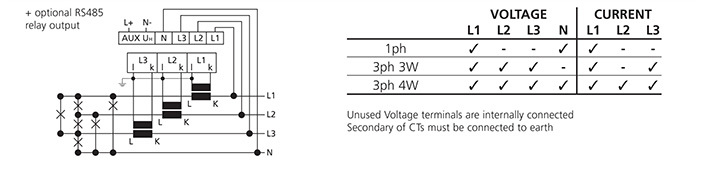

| Phase Voltage (V) | Export Active Energy (W.h) |
| Phase to Neutral Voltage (V) | Import Reactive Energy (Var.H) |
| Phase Current (I) | Export Reactive Energy (Var.H) |
| Neutral Currant | VA Energy (VA.h) |
| Frequency (Hz) | Amp Hour (A.h) |
| Average Power Factor (PF) | System Amp Demand (A Dmd) |
| Import Active Power (W) | System Import Active Power Demand (W Dmd) |
| Import Active Power per phase L1 L2 L3 (W) | System Export Active Power Demand (W Dmd) |
| Export Active Power (W) | System Apparent Power Demand (VA Dmd) |
| Export Active Power per phase L1 L2 L3 (W) | System Amp Maximum Demand (A Max Dmd) |
| Import Reactive Power (Var) | System Import Active Power Max Dmd (W Max Dmd) |
| Export Reactive Power (Var) | System Export Active Power Max Dmd (W Max Dmd) |
| Apparent Power (Va) | System Apparent Power Max Dmd (VA Max Dmd) |
| Import Active Energy (W.h) | |
| THD Current 1% upto 31st |
| ACCURACY | |
| Volts/Amps: | 0.5% of reading |
| Frequency: | 0.1 Hz |
| Active Power: | 1% of reading |
| Apparent Power: | 1% of reading |
| Power Factor: | 1% of range |
| Energy: | Class 1 to IEC EN 62053-21:2003 |
| INPUT | |
| Rated Un: | 28-330V LN, 48-570V L-L |
| Overload: | 800V continuous |
| Burden: | 0.5VA per phase |
| Rated In: | 0.5-6A (5A nominal) |
| Overload: | 4 In for 1 sec |
| Burden: | 0.5VA per phase |
| Auxiliary: | 100-440V AC / 100-420V DC |
| Frequency: | 45/65Hz |
| DISPLAY | |
| Digits: | 4 lines 9999 |
| Custom LCD | |
| Brightness/Colour: | User adjustable |
| OUTPUT RELAY | |
| Wh or VArh: | SPNO rated 50V |
| Pulse output: | 120mA 5W AC/DC |
| Pulse duration: | Programmable |
| INSULATION | |
| Installation category: | III (480 V AC ph/ph) |
| Degree of pollution: | 2 |
| Rated impulse withstand voltage: | IEC 60947-1-V imp: 4kV |
| Meters front: | Class II |
| Electrical security: | IEC 61010-1 |
| Inputs + Aux to case: | 4kV rms 50Hz for 1 min |
| Inputs + Aux to RS485 port: | 3kV rms 50Hz for 1 min |
| Inputs + Aux to relay output: | 1k5V rms 50Hz for 1 min |
| Low voltage dc Aux to Inputs: | 1k5V rms 50Hz for 1 min |
| ELECTROMAGNETIC COMPATIBILITY Immunity to: | |
| electrostatic discharges: | IEC 61000-4-2-Level III |
| radiated radio-Hz fields: | IEC 61000-4-3-Level III |
| electrical fast transient/brusts: | IEC 61000-4-4-Level III |
| impulse waves: | IEC 61000-4-5-Level III |
| conducted disturbances: | IEC 61000-4-6-Level III |
| voltage dips & short interruptions: | IEC 61000-4-11 |
| Emissions to: | |
| conducted and radiated: | CISPR11-Class A |
| ENVIRONMENT | |
| Working temp: | -20 to +70ºC |
| Storage temp: | -30 to +80ºC |
| Relative humidity: | 0-95% non condensing |
| Shock: | 30G in 2 planes |

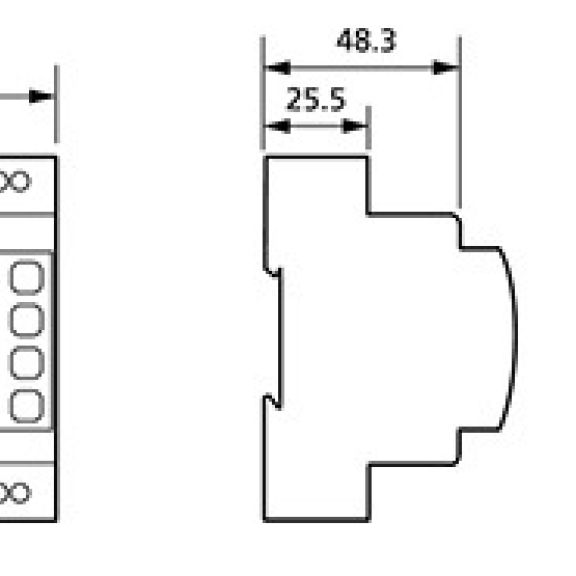

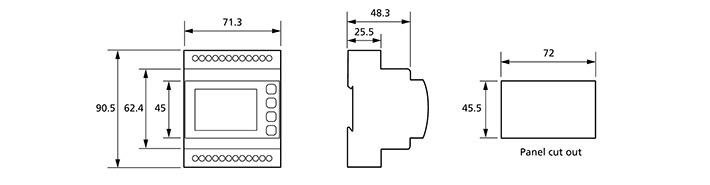

| ENCLOSURE | |
| Polycarbonate case to UL94V0 | |
| Weight: | 0.2kg |
| IP Rating: | IP52 (front) |
