Hobut CTV Moulded Case Rectangular Current Transformer series
Mounting the transformers requires vertical busbars

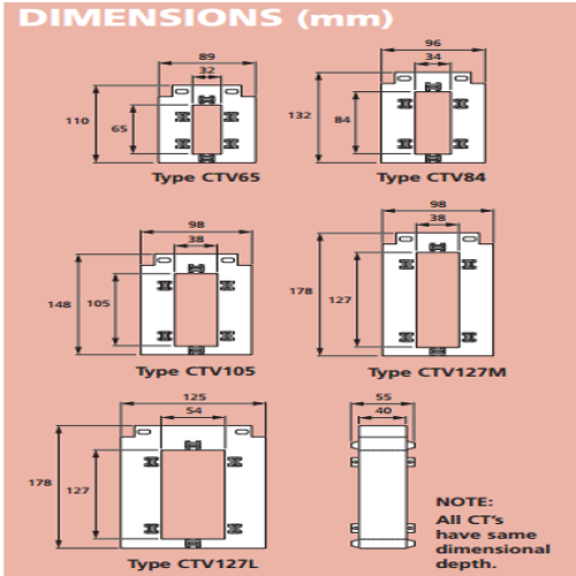

- Various sizes depending on models (See image on left-hand side)
- Class 1 Accuracy as standard (Please specify for 0.5)
- VA: 5VA as standard (Please specify for 10VA and 15VA)
- 5A secondary as standard (Please specify for 1A secondary)
Product Details

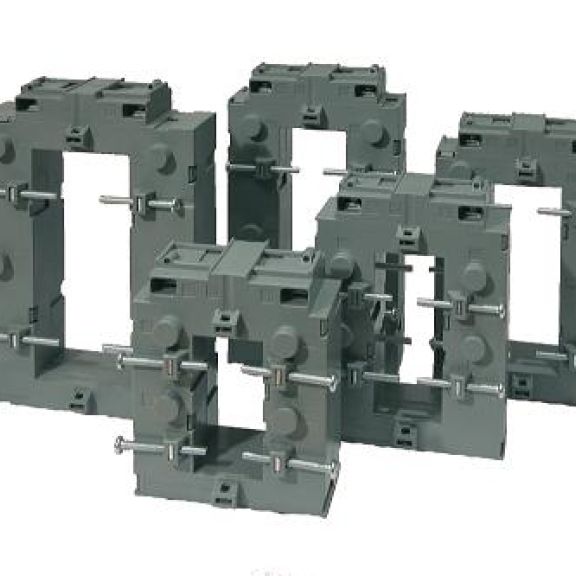

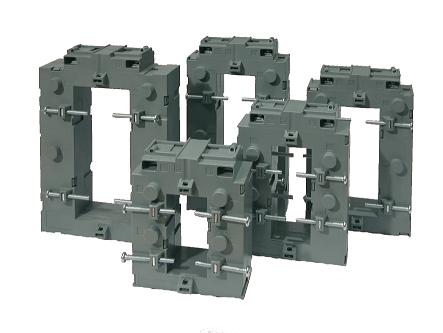

The CTV Current Transformers are rectangular styled moulded case current transformers in compact cases with sealable terminal covers to suit a range of busbar sizes.

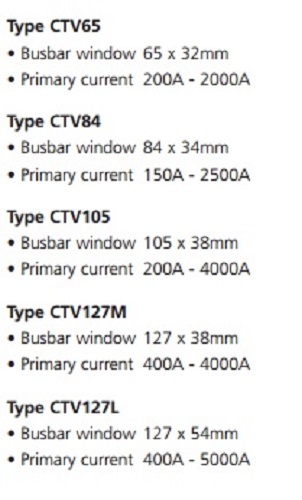

CTV Models:
Product Specification
• Conforms to: IEC185, BS7626, BSEN 60044-1 & IEC60044-1
• Rated System Voltage: 0.72/3kV
• Ambient temperature range: -30ºC to 85º
• Continuous current: 1.2 x rated current
• Sealable terminal covers
