Hobut CT75 3 Phase Current Transformer range

  • Aperture: 30mm
  • Accuracy: Class 1
  • Input: 80 -160A
  • Output: 5A

    Enquire Now

    Product Details

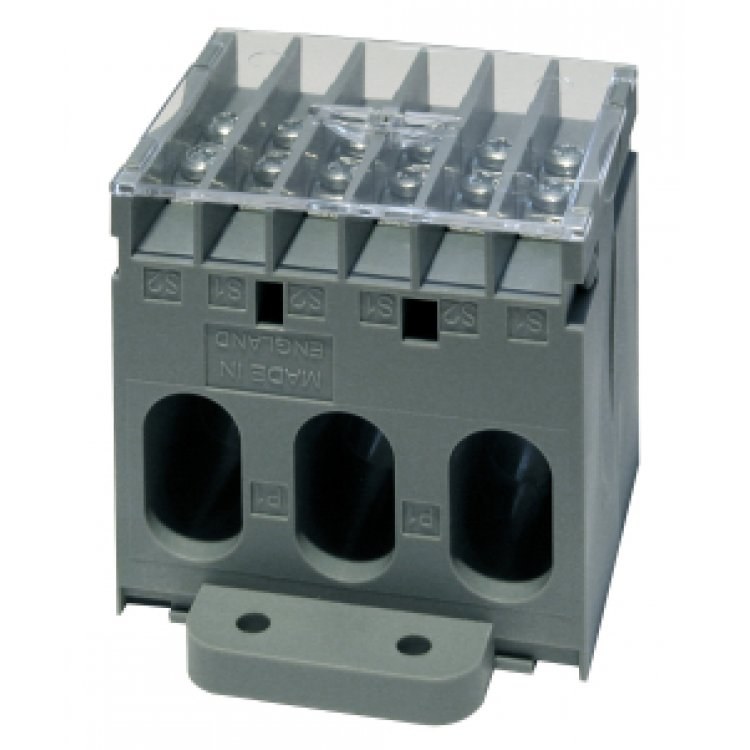

    Miniature three phase current transformers suitable for primary ranges from 80-160A with 5A secondary. Supplied with terminal cover and integral foot mount.

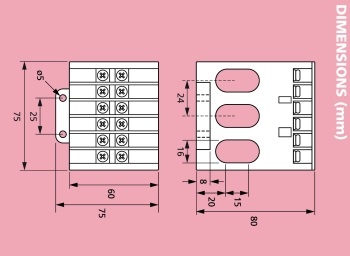

    The products have an overall width of 75mm allowing installation of 30mm allowing installation directly on top of moulded case circuit breakers. They can also be used independently in 3 phase applications.

    CT75 models:

    • 60:5A (1VA)
    • 80:5A (1.5VA)
    • 100:5A (1.5VA)
    • 125:5A (2.5VA)
    • 150:5A (2.5VA)
    • 160:5A (2.5VA)

    Product Specification

    • Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1.
    • Rated system voltage 0.72/3kV.
     • Ambient temperature range -30°C to 80°C.
     • Frequency range 50-60Hz.
    • Insulation level 3kV for 1 minute.
     • Continuous current 1.2 x rated current.
