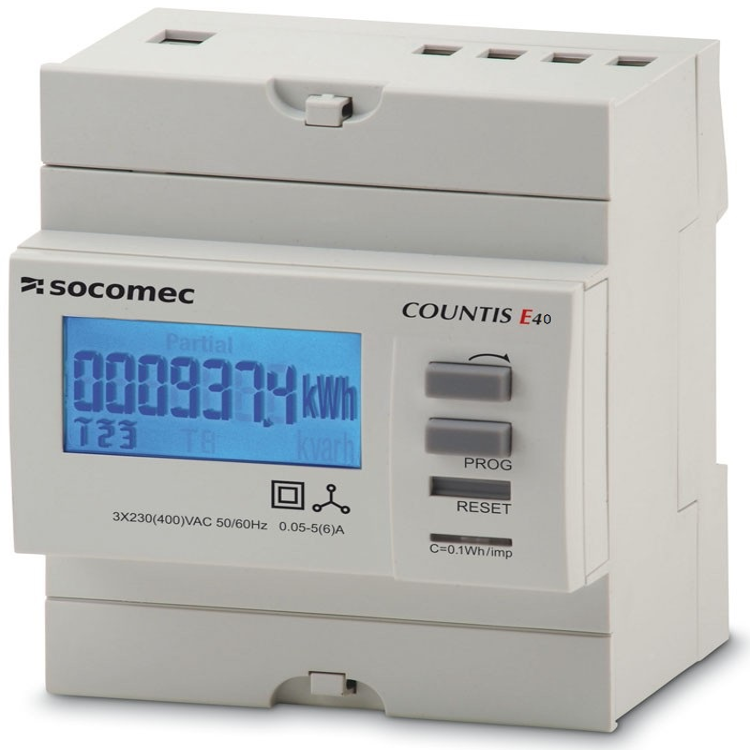

Socomec Countis E40 3 Phase Energy Meter 5A CT Connected Series

Product Details

The Countis E40 is a totalising meter calculating active and reactive electrical energy displayed through its back-lit LCD display.

It is used for connection via CT up to 6000 A (Primary).

Socomec E40 Series models:

• E40      Pulse output (4850-3008)
• E41      Dual tariff (2 partial counters) + Pulse output (4850-3009)
• E42      Dual tariff + MID (Reset impossible) + Pulse output (4825-3015)
• E43      Dual tariff + RS485 MODBUS communication (4850-3017)
• E44      Dual tariff + RS485 MODBUS communication + MID (Reset impossible) (4850-3014)
• E45      Dual tariff + M-BUS communication (4850-3027)
• E46      Dual tariff + M-BUS communication + MID (Reset impossible) (4850-3028)

Product Specification

Current measurement

• Type: TC/5A up to 6000 A
• Input consumption: 0.2 VA per phase
• Overload: 120 A / 0.5s
• Sustained overload: 6 A
• Minimum measured current: 10 mA

Voltage measurement

• Range of measurement: 230 V +/- 20%
• Consumption on inrush (VA): 2 VA
• Sustained overload: 280 V

Energy accuracy

• Active (according to IEC 62053-21): Class 1

Input supply

• Self-supply: Yes
• Frequency: 50 / 60 Hz

Output (pulsed)

• Number: 1
• Phototransistor type IEC 62053-31: Class A
• Fixed weight of impulses: 100 Wh
• Impulse duration: 100 ms

Operating conditions

• Operating temperature: -10 to 55 °C
• Storage temperature: -20 to 70 °C
• Relative humidity: 85 %

Housing

• Dimensions: 4 DIN / 73mm x 90mm x 62.5mm ( W x H x D)

Conformity to standards

• IEC 62053-23: Class 2
• IEC 62053-21: Class 1
• IEC 61557-12

Product Downloads

• Socomec Countis E40 Series Datasheet (1.13MB)
