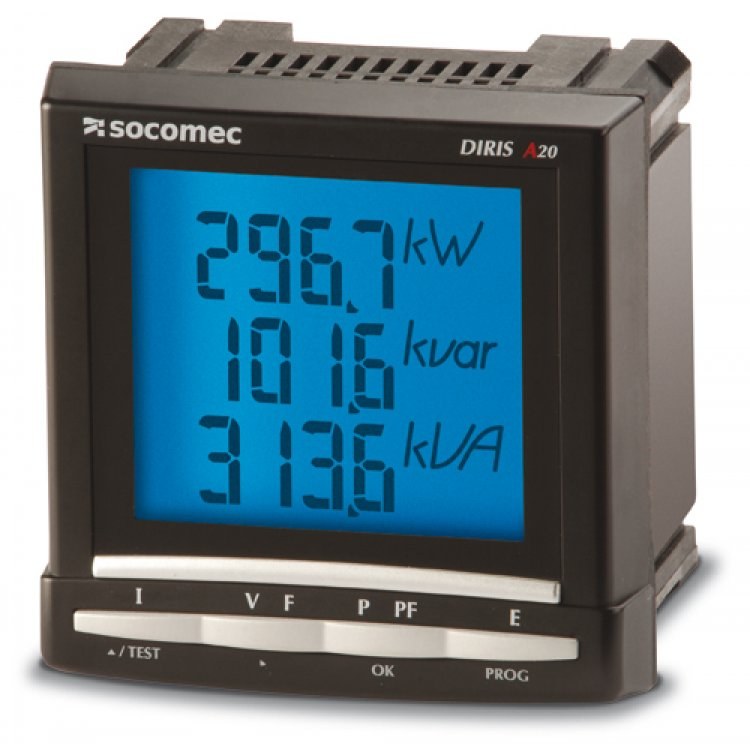

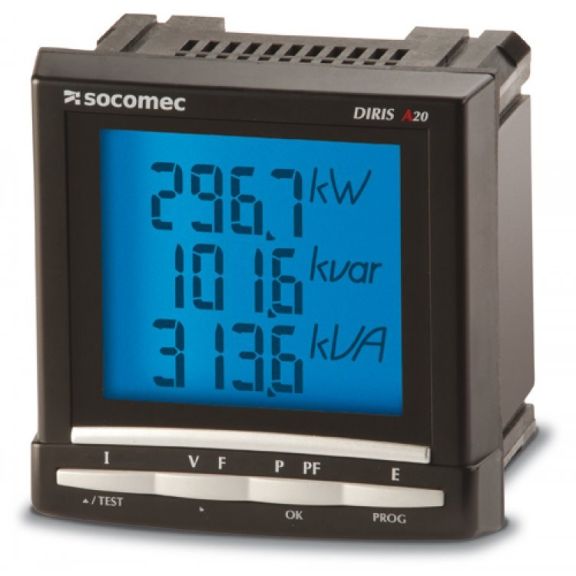

Socomec Diris A20 Multi-function 3 Phase Electricity meter DIN 96 (4825-0200)

  • CT Ratio: Programmable up to 9999A
  • Housing: DIN-96 (Panel-Mount)
  • High resolution LCD Screen
  • Multi-function parameters
  • Optional Modules available (Modbus & Pulse)
Enquire Now

Product Details

The Socomec Diris A20 is a 3-phase 5A CT-connected modular multi-function meter which is suitable for all industrial and commercial electrical installations.

The Diris A20 can measure the following parameters; kW, kVAR, kVA, Voltage, Current, Power Factor and Harmonics. The parameters can be easily viewed from the meters large back-lit LCD display.

Installation is easy with a compact DIN 96 panel-mount casing and plug-in terminal blocks.

Optional plug-in modules are available for: Pulse Outputs & Modbus communications

Product Specification

  • Current Primary: 9999A ( User-Programmable)
  • Current Secondary: 5A (CT Connected - CT's sold separately)
  • 3 Phase voltage: 50-500V (L-L)
  • Single phase voltage: 28-289V
  • Instantaneous vales for (A, V, PF, Hz, P, Q and S)
  • Max values for current per phase and max instantaneous power
  • Active and Reactive Energy Import Registers
  • Panel mount: 96 x 96mm
  • Compact casing, plug-in terminal blocks
  • Extremely accurate with high quality measurements
  • Optimum readability with bright blue back light, high-resolution LCD display
  • Easy to use 4 or 6 large key
