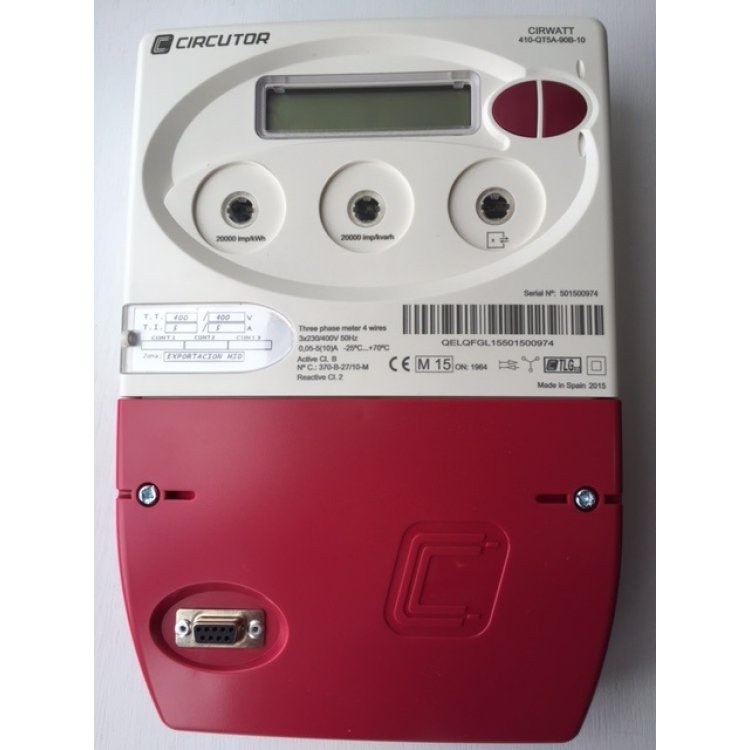

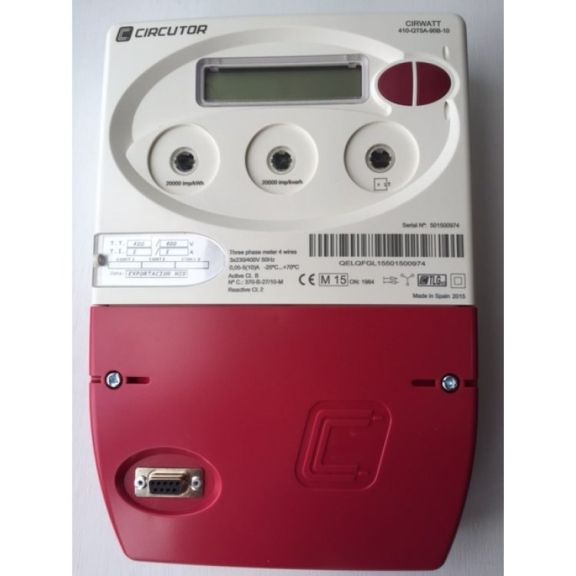

Circutor Cirwatt 410T 5A Current Transformer Connected 3-Phase MID Energy Meter Series

  • Dimensions - 172W x 255H
  • Input: 5A CT Connection
  • Import/Export measuring (4 Quadrant)
  • Multi-Tariff options
  • Modbus communications
Enquire Now

Product Details

Circutor Cirwatt is a 3-Phase Energy meter with the option of Modbus via RS485, RS232 or Ethernet.

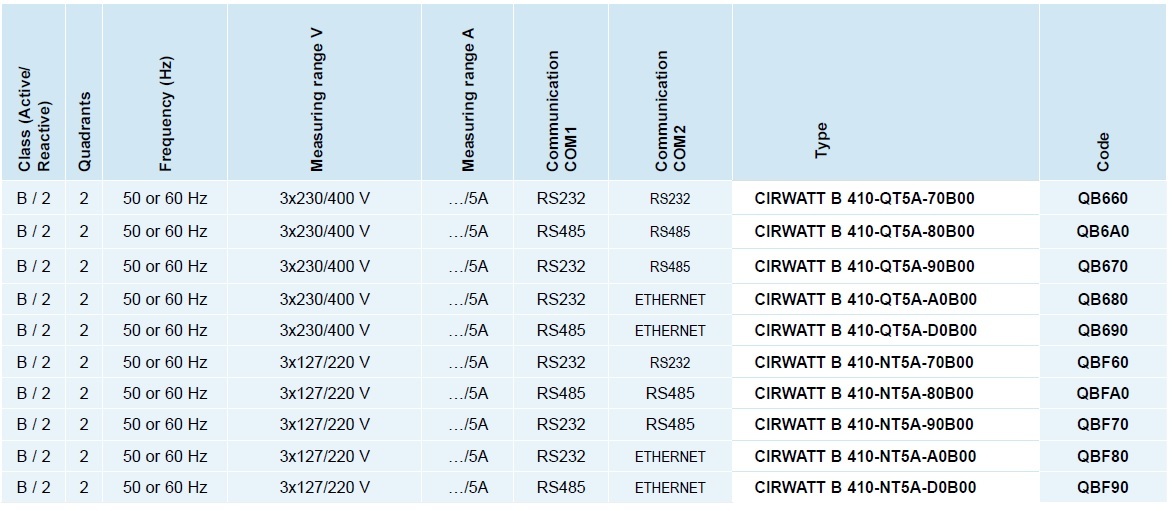

Circutor Cirwatt 410T various model types:


Product Specification

Power Supply

  • Nominal voltage: 3x200 (400) V -3 x 127 (230) V
  • Tolerance: 80% - 115 Un
  • Consumption: <2W/ <10 VA
  • Frequency: 50 to 60 Hz

Voltage measurements

  • Connection: Asymmetrical
  • Reference Voltage: 3x230 (400) V - 3x127 (230) V
  • Consumption: <2W/ <10 VA

Current measurement

  • Nominal current: 5 (100) or 10 (100) or 10 (120) or 15 (120) A
  • Start-up current: <0.04 x Iu
  • Minimum current: < 0.5 Iu
  • Current consumption: <0.1VA

Accuracy class

  • Accuracy measured in active energy: EN50470 (Class B) - IEC 62053-21 (Class 1)
  • Accuracy measured in reactive energy- IEC 62053-23 (Class 2)

Features

  • RS485: RS485 with 2 Relays outputs 2 Pulse outputs and 2 Pulse inputs
