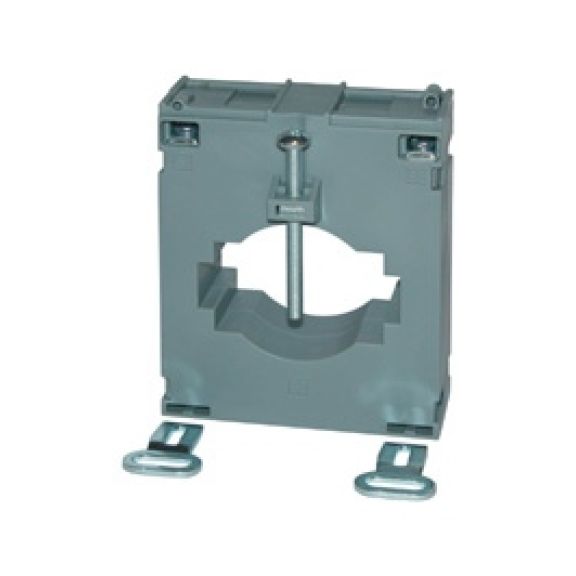

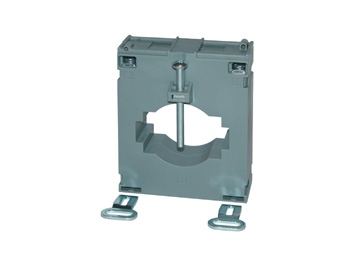

Hobut 18 Series (186) Moulded Case Current Transformers (46mm diameter, 400A to 1600A)

  • Accuracy: Class 1
  • DIN-Rail mounting clip supplied
  • Built-in sealable terminal covers
  • Mounting feet supplied
Enquire Now

Product Details

The CT’s are low cost Moulded-case Current Transformers suitable for Primary Currents from 400A to 1600A with built-in sealable terminal covers.

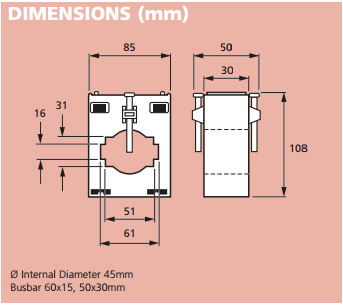

186 Current Transformers can be built to either a 5A or 1A standard secondary (1A upon request) using up to 61x15mm or 51x30mm busbars or cables up to 46mm diameter.

CT186 models:

  • 400:5A
  • 500:5A
  • 600:5A
  • 750:5A
  • 800:5A
  • 1000:5A
  • 1200:5A
  • 1250:5A
  • 1500:5A
  • 1600:5A

Product Specification

• Conforms to: IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2.
• Rated system voltage: 0.72/3kV.
• Ambient temperature range: -30°C to 40°C.
• Continuous Current: 1.2 x rated current.
