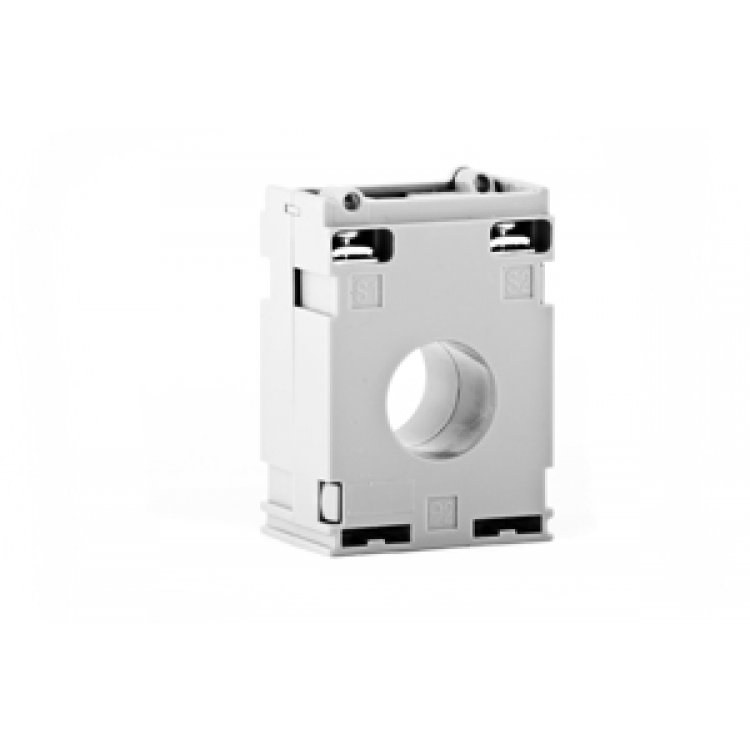

Hobut 13 Series (132) Moulded case Current Transformers (40A to 300A with 21mm Internal Diameter

Product Details

The CT132 Current Transformers are used for transforming various Primary Currents into 5A or 1A standard secondary using up to 21mm diameter cables.

They are a range of low cost Moulded-case Current Transformers suitable for Primary Currents from 40A to 300A with built-in sealable terminal covers.

CT132 models:

• CT132 - 40:5A
• CT132 -50:5A
• CT132 -60:5A
• CT132 -75:5A
• CT132 -80:5A
• CT132 -100:5A
• CT132 -125:5A
• CT132 -150:5A
• CT132 -200:5A
• CT132 -250:5A
• CT132 -300:5A

Product Specification

•  Conforms to IEC 185, BS 7626, BSEN 60044-1 and IEC 60044-1
• Rated system voltage 0.72 / 3kV
• Continuous Current 1.2 x rated current
• Ambient temperature range -30ºC to 85ºC

Product Downloads

• Hobut CT132 Datasheet (0.09MB)
