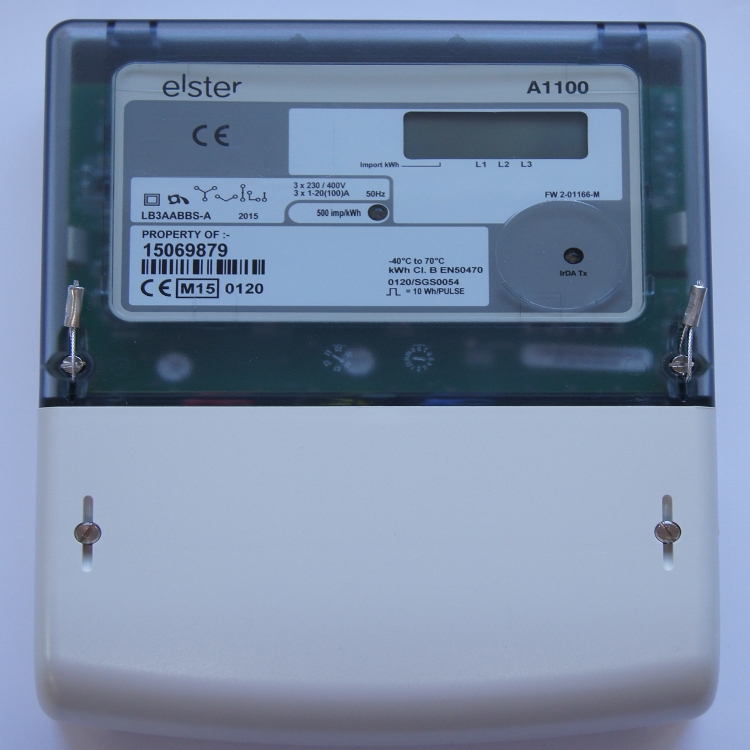

Elster A1100 MID kWh Polyphase Direct Connected Meter (UK504-060)

  • Dimensions: 233mm Height, 171.5mm Height and 49mm Depth
  • Direct Connected: 20-100A or 10-60A
  • Polyphase applications: 3 phase/3 wire, 3 phase/4 wire, 2 phases of a 3 phase/4 wire, 2 phase/3 wire, 1 phase/3 wire, 1 phase/2 wire (LCD meter only)
  • Voltage Range option 1: 220-240V (L-N) or 220-240V (L-L)
  • Voltage Range option 2: 110-120V (L-N) or 110-120V (L-L)
  • Import/Export readings
Enquire Now

Product Details

The A1100 meter is suitable for Direct Connected Domestic, Commercial and Light industrial applications.

Product Specification

  • Dimensions: 233mm Height, 171.5mm Height and 49mm Depth
  • Direct Connected: 20-100A or 10-60A
  • Voltage Range: 220-240V (L-N) or 220-240V (L-L), 110-120V (L-N) or 110-120V (L-L) 50 or 60Hz
  • Burden: 0.9W and 9VA capacitive burden/phase (Voltage)
  • Burden: 12Kv 1.2/50uS 500ohm source
  • Standards: kWh Class 1 or 2 IEC 61036:1996 EC Directive 2002/22/EC (MID) kWh Class A or Class B
  • kWh import or kWh import/export
  • Accuracy - Class 1 or Class 2, EC Directive 2004/22/┬úC (MID) - kWh Class A or Class B
  • Polyphase applications: 3 phase/3 wire, 3 phase/4 wire, 2 phases of a 3 phase/4 wire, 2 phase/3 wire, 1 phase/3 wire, 1 phase/2 wire (LCD meter only)
  • 16 year product life
  • Large figure display (9.8mm)
  • Extensive security data
  • IrDA (Infrared Data Association) output for transmitting billing, security and status data
  • Compact design
  • 12kV impulse withstand
  • Double insulated, glass filled polycarbonate case
  • DIN 43857 Part 2 and Part 4 (except for top fixing centres)
  • IP53 in accordance with IEC 60529:1989
  • Weight: 0.86kg
