Socomec Diris A20 Pulse output Module (4825-0080)

  • Provides a single Pulsed output for connection to a metering system or BMS (Building Managment System)
  • Pulse constant, Pulse length and Pulse type can all be input manually on the front on the meter
Enquire Now

Product Details

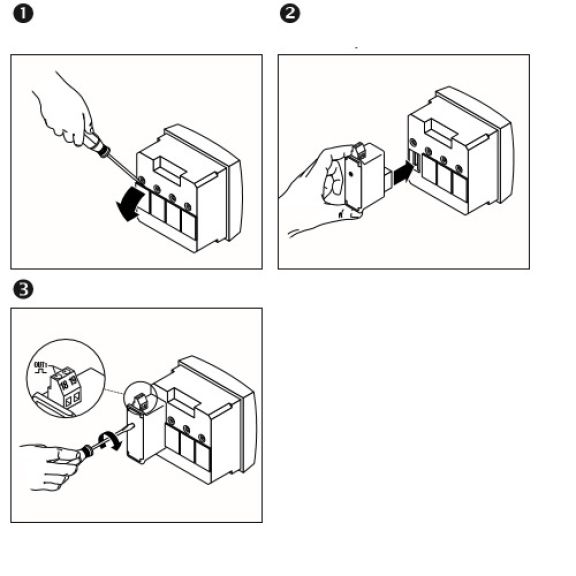

Camax can supply ex-stock the Pulse communications module for the Diris A20 separately; allowing existing meters to examine further into Energy management.

Abbreviations (4825-0200)

  • Out 1: Pulse output 1
  • TYPE: Pulse output allocation
  • EA+: Positive Active Power (kWh+)
  • ER+: Positive Reactive Power (kVArh+)
  • VAL: Pulse Value
  • DUR: Pulse Duration

Programming

  • Output Upper threshold: HT
  • Output Lower  threshold: LT
  • Time Delay threshold: Seconds
  • Operating: Relay (NC)
  • Output Type:tyPE
  • Pulse output rate:VAL = 100 (1 pulse per 100kVArh)
  • Pulse output duration: Seconds
  • Hysteresis threshold: Hyst

Product Specification

  • Reed Relays: Max 100V DC - 0.5V
  • Number of operations: 8
  • UL - CSA Approval
  • Standard: UL 61010-1
