Siretta Mike 1A GSM/GPRS & 3G 1/4 Wave Whip Antenna/Aerial SMA or FME

  • Available in SMA or FME Connection types
  • Meter Cable Length options: 1.2M, 2.5M and 5M
  • 3G and GSM/GPRS Signalling
  • 1/4 Wave Whip
Enquire Now

Product Details

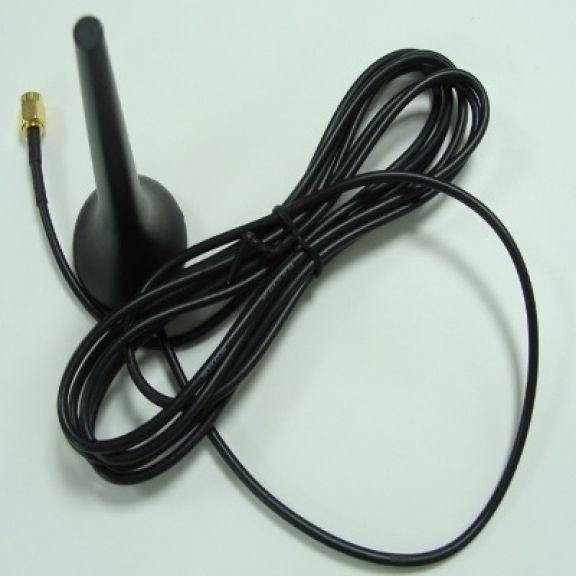

The Mike 1A is a ¼ wave mag mount whip antenna, tuned to quad band GSM/GPRS and 3G frequencies. Its strong magnetic base provides a flexible method of mounting, allowing the user to constantly manoeuvre the antenna to best optimise signal strength (3 dBi).

Mag-mount antennas are ideal for fast and simple installations that can be adjusted whenever necessary for the user.

Camax supply this product to allow communication through GSM modems (ASL modems available for purchase).

Product Specification

Antenna Specifications

  • Operating Temperature: -40 to +85C
  • Impedance: 50 ohm
  • Gain: 3dBi
  • VSWR: <1.5:1
  • Polarization: Vertical
  • Radiating Element: 1/4 wave whip

Operating Frequencies

  • 850, 900, 1800, 1900MHz (Quad Band GSM/GPRS)
  • 2.1GHz (3G)

Dimensions

  • Height: 105 mm
  • Width: 34 mm

Mounting Specifications

  • Cable: RG174
  • Mounting Method: Magnetic
