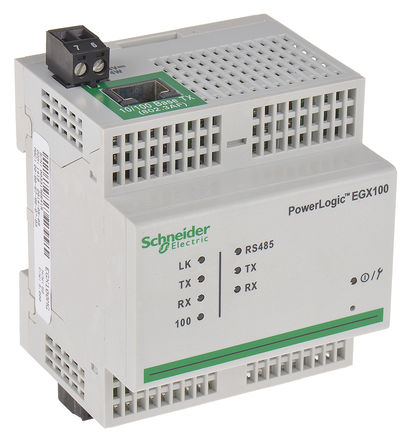

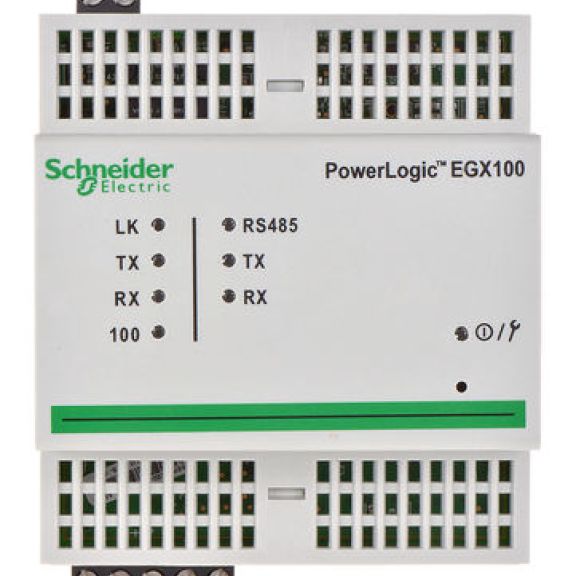

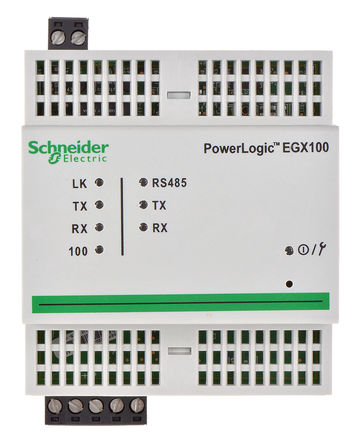

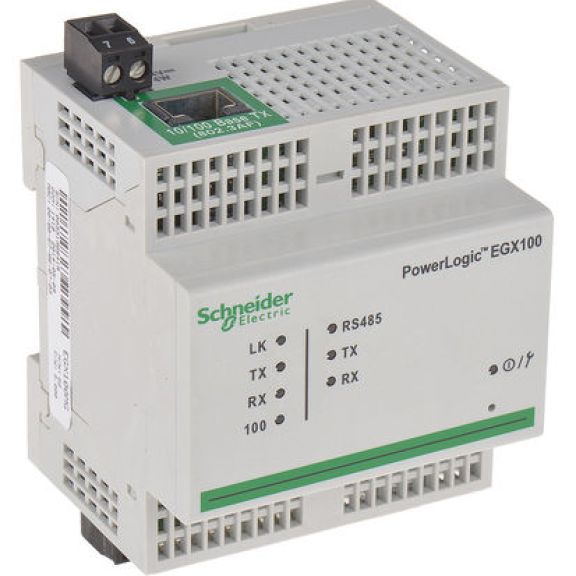

Schneider Powerlogic EGX100 Ethernet Gateway (EGX100MG)

  • Thanks to simple, quick, shared and secured access to information from all electrical network products via Modbus TCP/IP.
  • Connecting all building utilities, heating, ventilation, lighting, management of electrical distribution, safety, etc, providing flexible and scaleable network architecture.
  • 10/100Base-Tx Ethernet port
  • RS485 / RS232 serial port, optically isolated
  • 2-wire and 4-wire compatibility
  • Support for serial master to ModbusTCP/IP routing
  • 32 maximum connected devices
  • Web Interface for configuration, diagnostic and maintenance (Powerview software available from any device)
  • User interface in English, French, German, and Spanish
Enquire Now

Product Details

Camax are now supplying the PowerLogic EXGX100 Ethernet Gateway for either RS232 or RS485 at 38400/57600 Baud rate

The device requires a power supply of 24V DC

Dimensions: (H x W x D) 80.8mm x 72mm x 65.8mm

Din-Rail Mount: 3 DIN Modules

Protocol: 10/100 Mbit/s

Product Specification

  • Number of devices: 32 (Directly) and 247 (Indirectly)
  • RS232 or ES485 at 38400/57600 Baud rate
  • Number of ports: 1
  • Din-Rail Mount: 3 DIN Modules
  • Power Supply: 24V DC
  • Standards: AS/NZS25 60950, CSA 22.2 No 60950, EN 60950, IEC 60950, UL 508, UL 60950
