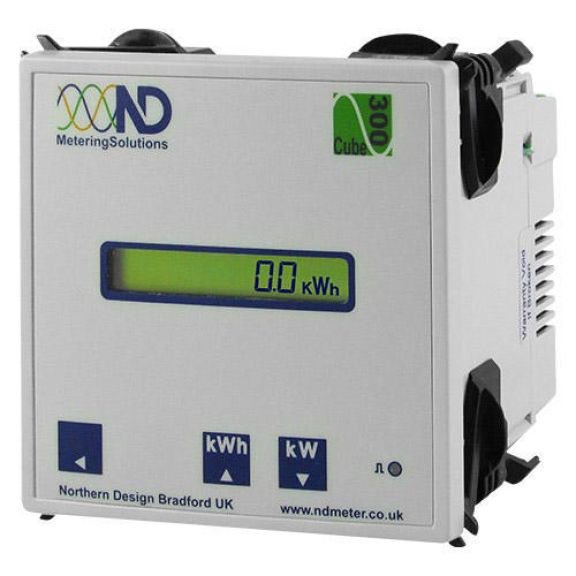

Northern Design Cube 300 kWh meter

Product Details

The ND Cube 300 is a cost effective kWh and kW panel mount meter, which has pulsed output and accuracy better than class 1.

It also features 'Right First Time' installation aids (kW display,CT,VT and Pulse value displays) that clearly show if the meter had been wired and programmed correctly.

With all the features mentioned above it makes this meter perfect for control panels and switchboards, with an easy to read display and pulsed output this DIN 96 x 96 meter is an ideal choice.

Cube 300 has 4 models:

• Cube 300 kWh Meter
• Cube 300 Dual Tariff Meter
• Cube 300 Modbus Meter
• Cube 300 Modbus & Dual Tariff Meter

Product Specification

Inputs

• System 3 Phase 3 or 4 Wire Unbalanced Load
• 3 Phase Balanced & Single Phase  (Can be wired Single Phase on L1,V1)
• Voltage 400/230V. 3 Phase 3 or 4 Wire
• 110/63V & 208/120V optional.
• Current 5A from external CTs. 1A optional. Fully isolated
• Measurement Range Voltage 50% to 120%
• Current 0.2% to 120%
• Harmonics Up to 20th harmonics

Auxiliary Supply

• Standard- 230V
• Options- 110V
• Load- 2VA max
• Overload- x1.2 continuous

Accuracy

• kWh- Better than Class 1 per EN61036 & EN62053-21
• Better than Class 1 per BS 8431
• Kw-Better than +1 reading, Class 1 BS 8431

Mechanical

• Enclosure- DIN 43700 96x96
• Dimensions- 96x96x83.5mm (72 behind panel)

Product Downloads

• Cube300 kWh meter leaflet (0.52MB)
• Cube 300 Operating Manual (0.13MB)
