Hobut CTSC mV Split-core Current Transformers Series with 0.333V output

High Sensitivity
Accuracy: Class 1
Linearity with minimum phase shift
0.333V AC secondary output at rated current
Mechanical hinge

Enquire Now

Product Details

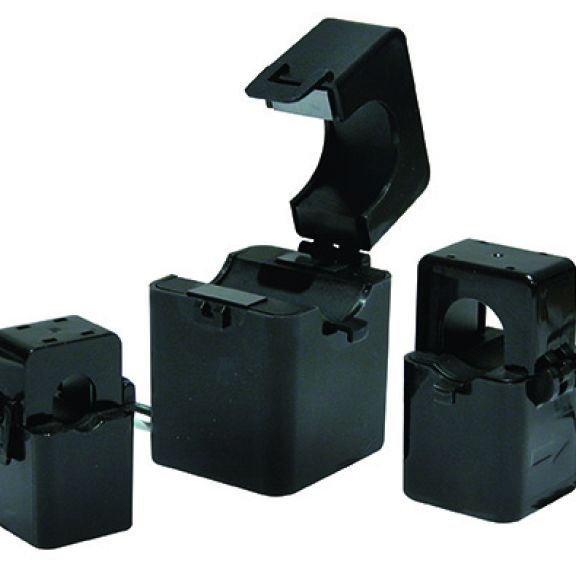

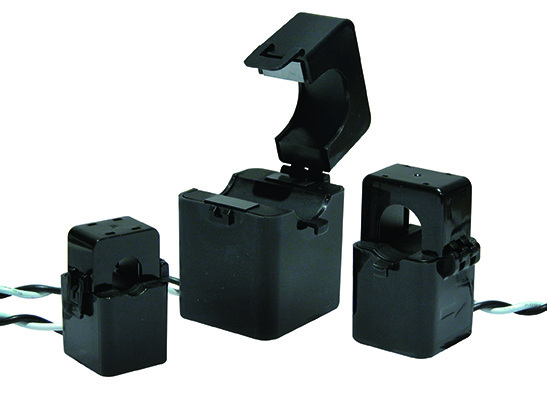

The Hobut CTSC mV Current Transformer is designed to fit into confined spaces whilst the Primary conductor is still live. The range of CT’s are compactly designed with a mechanical hinge for multiple opening and closing action.

For connection into existing networks (retro-fitting). Often for use with multi-function meters that have 0.333V input.

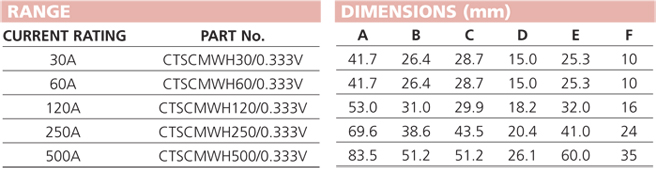

CTSC Models:

30A:0.333V
60A:0.333V
120A:0.333V
250A:0.333V
500A:0.333V

Product Specification

• Input frequency 50 to 400Hz
• Maximum primary voltage 720V AC
• Dielectric withstand voltage 2.5Kv for 1 minute
• Operating temperature -15C to +50C

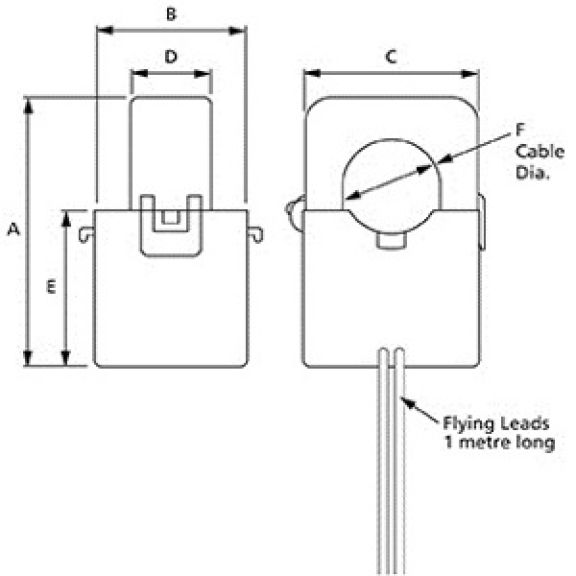

• 1 metre long flying lead twisted pair (22AWG)
• Construction – Ferrite core material • Case nylon UL flame retardant rating 94V-0
