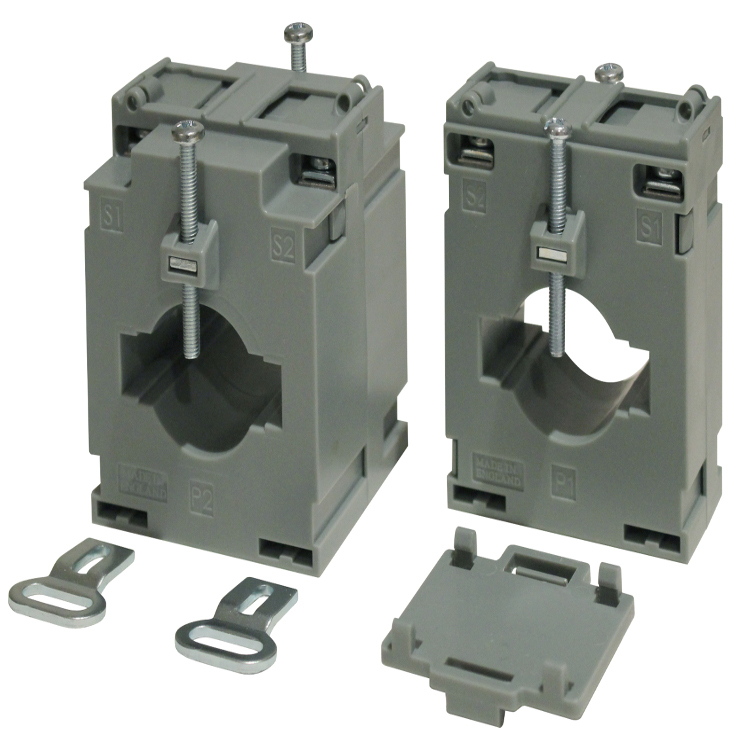

The CT’s are low cost Moulded-case Current transformers suitable for Primary Currents from 100A to 800A with built-in sealable terminal covers.

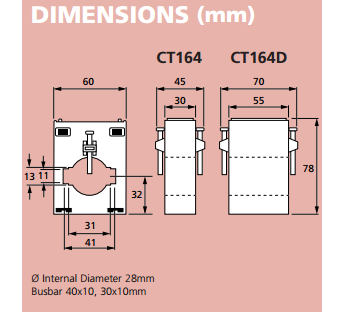

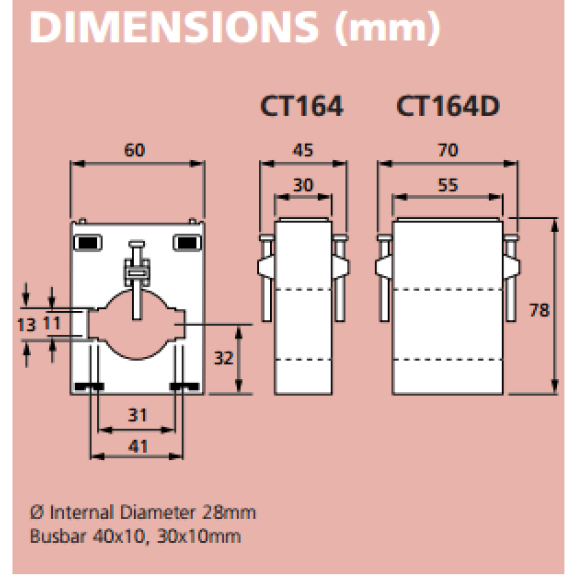

164 series Current Transformers can be built to either a 5A or 1A standard secondary (1A upon request) using up to 40x10mm or 30x10mm busbars or cables up to 28mm diameter.
• Conforms to IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2. • Rated system voltage 0.72/3kV. • Ambient temperature range -30°C to 40°C. • Continuous current, 1.2 x rated current.
