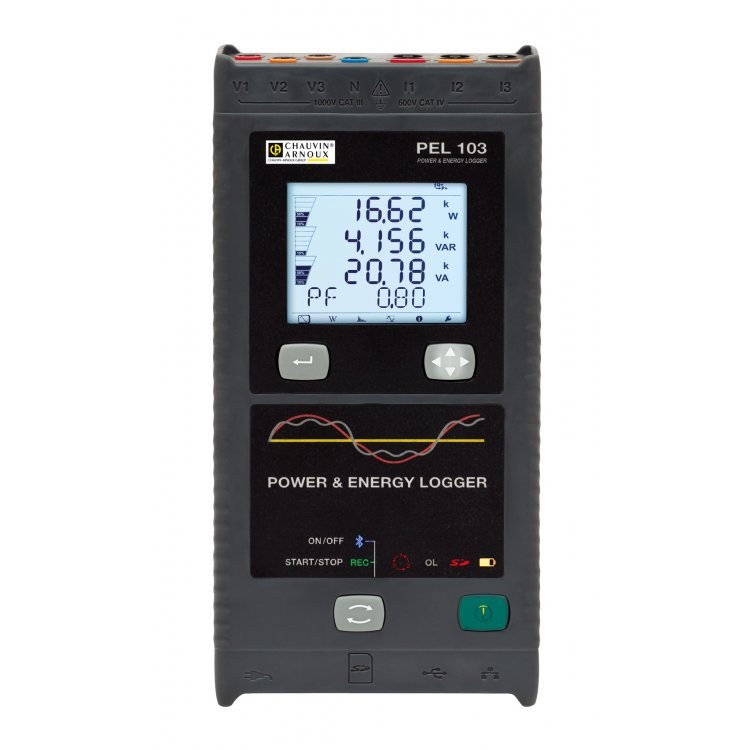

Chauvin Arnoux PEL103 Power and Energy Logger with 3 x MA193 Current Clamps (P01157151)

  • Suitable for use on single-phase, split-phase and three-phase installations
  • High freqency capability (400Hz Avionics)
  • Can be installed without cutting off the mains power supply
  • Map the electrical consumption on a site
  • Gain a real-time snapshot of consumption
  • Analyse electrical network quality
  • Record harmonics up to the 50th order with phase indication
  • Record results to an SD card (2GB)
  • Real-time communication with a PC
  • Data transfer and analysis with supplied PEL software
Enquire Now

Product Details

Product includes: PEL Transfer Software, 3 x MA193 200mm Flexible Clamps (optional - can be added when purchasing), 4 x Measurement Leads, 4 x Crocodile Clips, 2GB SD Card, SD Card to USB adapter, Set of Rings and Inserts, 1.8m Mains Power Cable, 1m USB Cable, Multifix Mounting Systems, Operating Manual (on CD), Carry Case

The Chauvin Arnoux PEL103 Power Energy Logger is designed to measure and store the consumption of electrical installations used in a circuit, in order to improve energy efficiency and reduce billing costs. This model improves upon the PEL102 with a backlit 4-line LCD capable of clearly displaying readings in real-time.

The Chauvin Arnoux PEL product range can  be fitted with a set of 3 x MA193 flexible clamps rated up to 10,000A AC; the PEL 103 comes with these clamps as standard (Other optional clamps are also available on site).

PEL Transfer software is included for data transfer from the Power Energy Logger to a PC. Once uploaded, electrical output figures can be displayed in both tables and graphs for further analysis. The PEL software can also retrieve real-time data via the logger, configure the unit and confirm connections before you take measurements you require.

Product Specification

  • Installation Types: Single-Phase, Split-Phase and Three Phase
  • Network Frequency: 50Hz, 60Hz and 400Hz ( Avionics)
  • Accuracy: 0.2%
  • Number of Channels: 3 Voltage Inputs, 3 Current Inputs
  • Voltage Range: 0 - 1000V AC/DC
  • Voltage Ratio: upto 650,000V
  • Current Ratio: upto 25,000A
  • Power: 10W - 10GW, 10var - 10Gvar, 10VA - 10GVA
  • Energy: upto 4EWh, 4Evarh, 4EVAh
  • Phase: cos φ, tan Φ, PF
  • Harmonics: upto the 50th order
  • Phase Order: Yes
  • Min/Max: Yes
  • Sampling: 128S/period
  • Acquisition Rate: 1 measurement per second
  • Aggregation: 1min - 60min
  • Memory: 2GB SD card
  • Communication: Bluetooth, USB, Ethernet
  • Power Supply: 110V - 250V (+10%, -15%) at 50Hz, 60Hz and 400Hz
  • Safety: IEC 61010, 600V CAT IV, 1000V CAT III
  • Casing: IP54
  • Dimensions: 256 x 125 x 37mm
  • Weight: 950g
