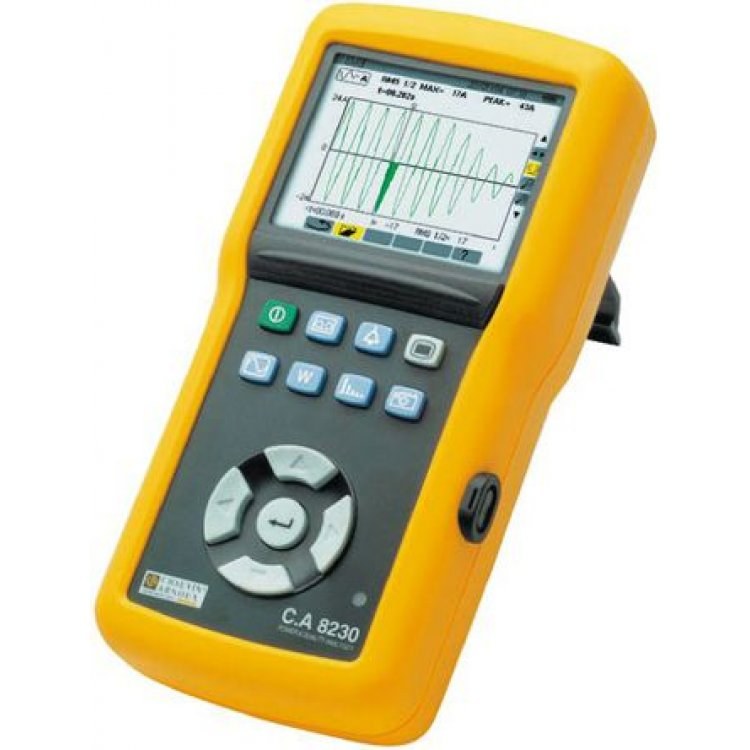

Chauvin Arnoux CA8230 Single Phase Power Analyser (P01160631EUR)

  • Large colour VGA (320 X 240 pixels) graphical display
  • Power measurement up to 250kW (dependant on clamp selection)
  • 600V rms and up to 6,500A (with clamp)
  • Harmonics (IEC 1000-4-7) display up to 50th order
  • MIN, MAX, AVERAGE, PEAK and Crest Factor display
  • W, VA, VAR power, DF, THD, Cos
  • Short term voltage flicker calculation
  • Recording, time stamping, and characterisation of disturbances including voltage overloads, brown- and blackouts, overshooting of powers and harmonic thresholds
  • Calculation of the K factor for the current in transformer applications
  • Personalised alarm settings enable up to 4096 events to be captured.
  • Simultaneous recording of all parameters, alarms and motor start up currents.
  • Rechargeable batteries
  • RS232 direct output to PC
  • CA8230: includes Dataviewer® software enabling screenshot capture; histogram or curve representations,; average value of numerous parameters according to time; management & log of measurement campaigns & report printing
Enquire Now

Product Details

Voltage range

  • 6 VRMS to 600 VRMS AC+DC ±(0.5%+2pts)

AC current range

  • 5mA to 6500 A ±(0.5%+1pts)

DC current range

  • 1 A to 1700 A ±(1%+1pts)

Fundamental frequency

  • 40 Hz to 70 Hz

Harmonics (IEC 1000-4-7)

  • Up to 50th order

Recordings

  • Up to several days

Alarms

  • 4096

Flicker PST (IEC 1000-4-15)

  • Yes

Phase rotation

  • Yes, with display of phase order in three-phase

IEC 61010-1

  • 600 V, Cat. III

Product Specification

  • Battery Life: 40 h
  • Best Current Measurement Accuracy: ±0.1% + 1 Digit
  • Best Voltage Measurement Accuracy: ±0.5% +2 Digits
  • Dimensions: 211 x 108 x 60mm
  • Display Type:  LCD
  • Height: 60mm
  • Interface Type: RS232, USB
  • Length: 211mm
  • Maximum Frequency: 70Hz
  • Maximum Voltage: 600V ac
  • Measurement Type: Current, Energy, Frequency, Harmonics, Inrush Current, Voltage
  • Minimum Frequency: 40 Hz
  • Model Number: C.A 8230
  • Number of Phases: Single
  • Power Source: Battery
  • Weight: 880g
  • Width: 108mm
