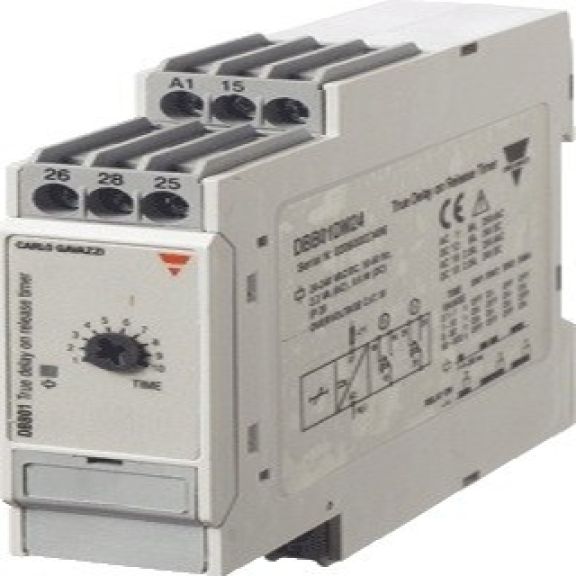

Carlo Gavazzi True Delay on Release Timer (DBB01DM24)
- Time range 0.1 to 600 s - capacitor powered
- 4 time ranges selectable by DIP-switches
- Knob-adjustable time setting
- Automatic start after drop-out of power supply
- Repeatability: ≤ 0.2%
- Output: 8 A SPDT or 8 A DPDT relay
- For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in
- 22.5 mm Euronorm or 36 mm Plug-in module housing
- Combined AC and DC power supply
- LED indication for relay status and power supply ON
Product Details
Multi voltage true delay on release timer with 4 time ranges from 0.1 to 600 s selectable by DIP-switches. For mounting on DIN-rail (DBB01) or Plug-in (PBB01).
Product Specification
Power Supply
- Rated operational voltage (IEC 60664, IEC 60038) through terminals: (DBB01- M24) A1, A2 24 to 240 VAC/DC
- (DBB01- 724): A1, A2 12 to 24 VDC
- Voltage interruption: ≤ 40 ms
Rated operational power
- AC supply: 2.2 VA
- DC supply: 0.6 W
General Specification
- Weight Approx: 120 g
- Screw terminals: (DBB01)
- Housing Dimensions: DBB01 22.5 x 80 x 99.5 mm
- Tightening torque Max: 0.5 Nm according to IEC EN 60947
- CE Marking: Yes
- EMC: Electromagnetic Compatibility
- Immunity: According to EN 61000-6-2
- Emission: According to EN 61000-6-3
- Timer Specifications: According to EN 61812-1
