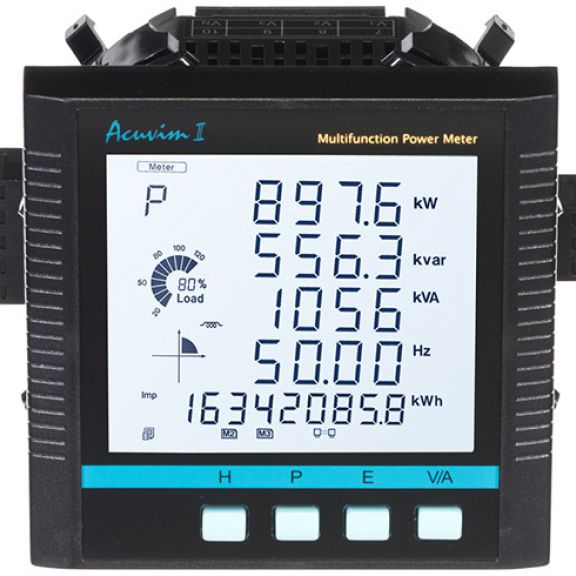

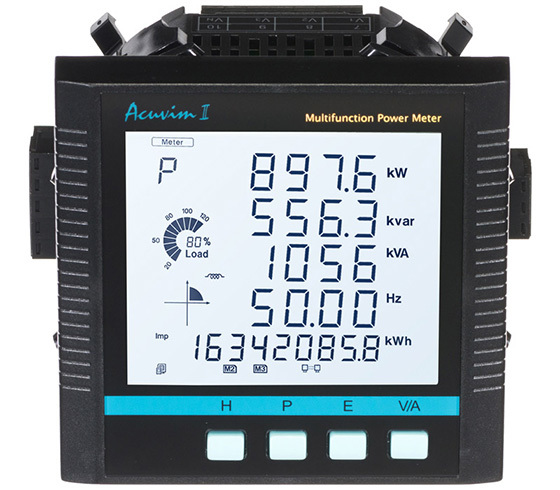

Accuenergy Acuvim II Series

  • UL Approved, 5 Year Warranty
  • Class 0.2S IEC 62053-33
  • Four Quadrant Powers
  • Power Quality Analysis with 16MB on-board memory
  • High Frequency Metering and Automatic Frequency adaptions to 50 or 60Hz (400Hz for aircraft systems)
  • Flexible Current input: 5A, 1A, 0.333mV, 100mA, 200mA CT and Rogowski Coils
  • Modbus RTU and DNP 3.0 Protocols available via RS485 - 100ms Refresh rate
  • Web Server and E-Mail Sending, SNTP
  • Individual Harmonics 2nd to 63rd
  • TOU 4 Tariffs, 12 seasons, 1 schedules
  • Plug-in modules for: BACNET IP, Ethernet and Profibus  (3 Maximum per meter)
  • 5 Year Warranty
Enquire Now

Product Details

The Acuvim II Series are high-end Multifunction Energy meters ideal for monitoring and controlling of power distribution systems. Through meticulous engineering efforts by Accuenergy, the Acuvim meter series are capable of meeting the toughest standards and ratings including: Class 0.2 accuracy, 400 Parameters and a 100ms Refresh rate!

With multiple modular I/O communication options for Modbus, Ethernet, Profibus DP and Bacnet the Acuvim II is one of the most versatile meters on the market!

Acuvim II Models/Modules available - 100ms Refresh rate:

  • Standard model: Modbus-RTU, DNP 3.0 (No AXM plug in expansion modules)
  • AXM-NET: Modbus-TCP, HTTP Webserver, SMTP Email
  • AXM-NET-P: Modbus-TCP, HTTP Webserver, SMTP Email, HTTP Push
  • AXM-BIP: BACnet-IP
  • AXM-RS485: Modbus RTU
  • AXM-WIFI: WIFI Module

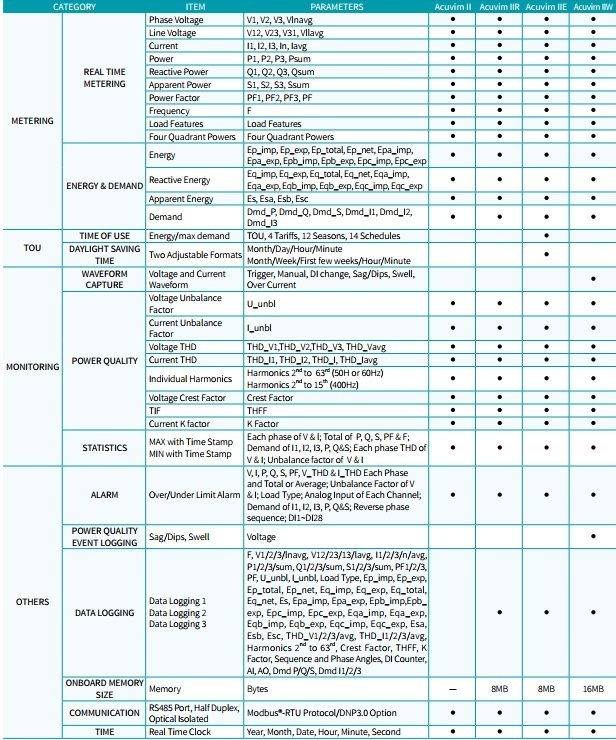

Product Specification
