Magnelab RCS-1800 3 Phase Rope CT with 0.333V output

Product Details

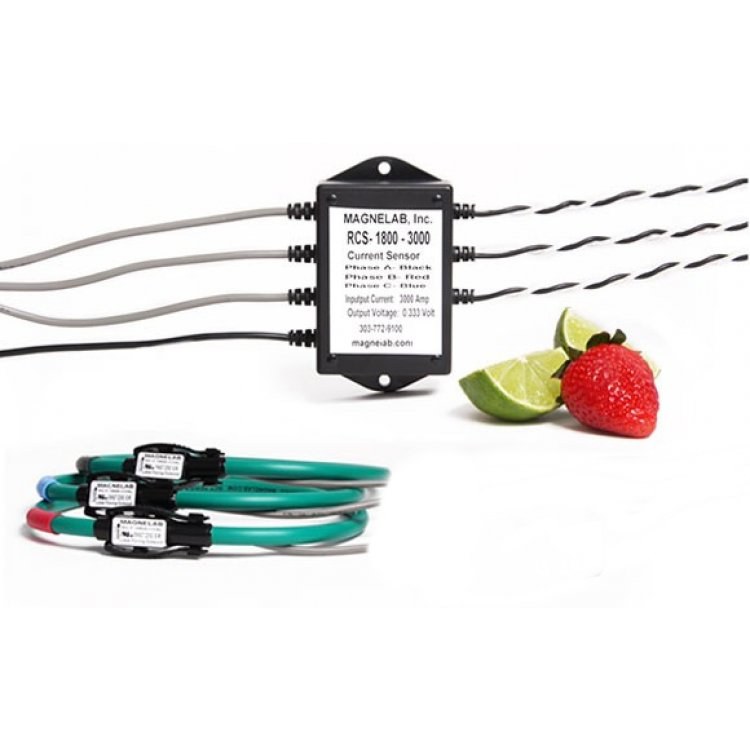

The Magnelab RCS-1800 Series Three-Phase flexible RopeCT® measures AC current up to 5,000 Amps (Depending on the model).

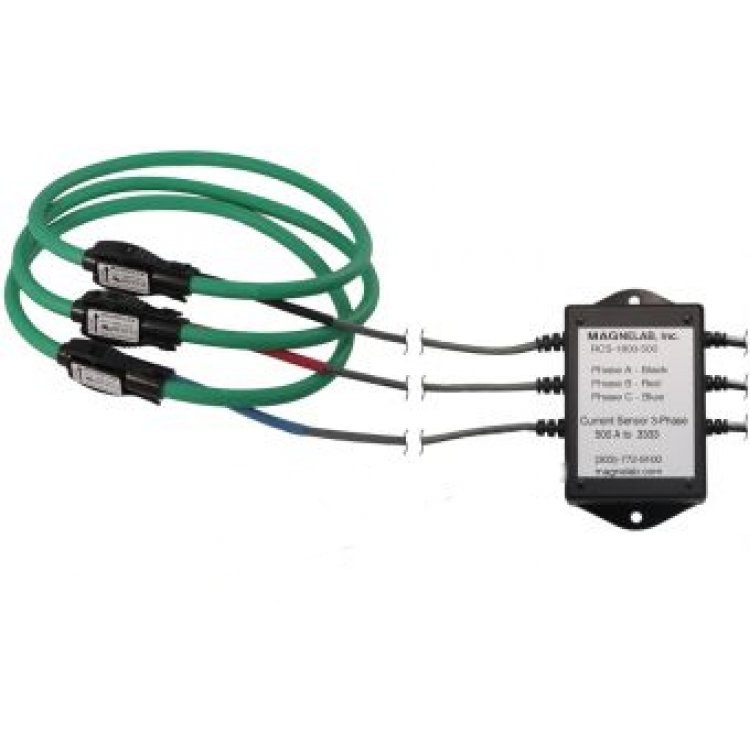

The three coils open at the connector junction and can be installed on an existing cable or buss-bar in a matter of seconds. Custom length, output, and other parameters are available.

RCS-1800 models:

• RCS-1800 - 250A:0.333V
• RCS-1800 - 400A:0333V
• RCS-1800 - 500A:0.333V
• RCS-1800 - 800A:0.333V
• RCS-1800 - 1000A:0.333V
• RCS-1800 - 1250A:0.333V
• RCS-1800 - 1500A:0.333V
• RCS-1800 - 2000A:0.333V
• RCS-1800 - 2500A:0.333V
• RCS-1800 - 3000A:0.333V
• RCS-1800 - 5000A:0.333V

Product Specification

• Input from 250 Amp to 5,000 Amp
• Output 0.333 V at rated current (up to 5 V available)
• Accuracy ±1%
• Rated accuracy at 10% to 300% rated current
• Phase angle < 0.5 degrees measured at 50% rated current
• Power supply require separated
• Three 18" [0.46 m] coils (12", 24", 36", or 48" also available)
• 4 ft. insulated leads (from Rope CT® to integrator)
• 8 ft. output leads twisted pair (600V)

Product Downloads

• RCS 1800 Rope CT Datasheet (0.86MB)
