Wago Voltage Taps 855 Series (855-8001 / 855-8004)

Product Details

The 855 Series Voltage Taps easily and safely tap the measurement voltage. This allows a fuse-protected measurement voltage to be tapped from an insulated conductor with just one turn - no tools required.

Product options

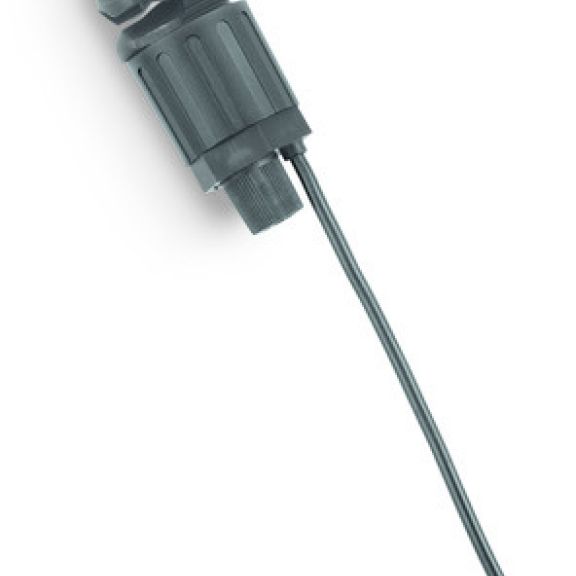

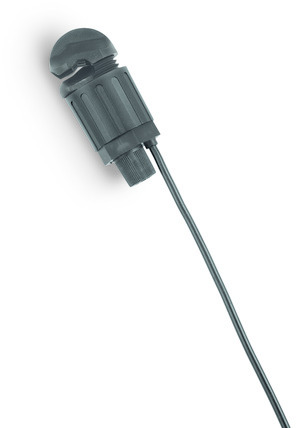

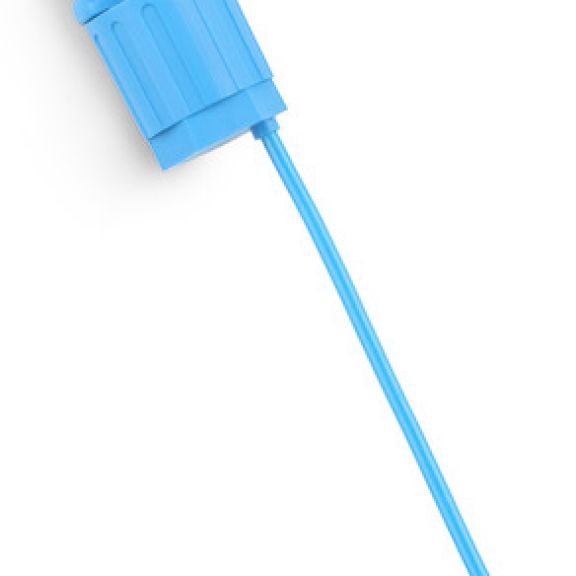

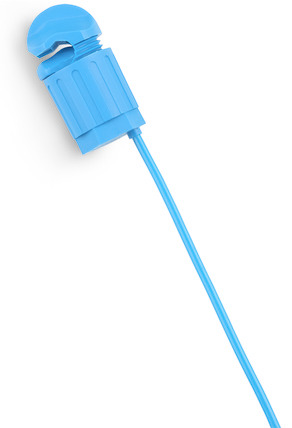

• Single Phase includes: 1 x Black conductor and 1 x Blue conductor

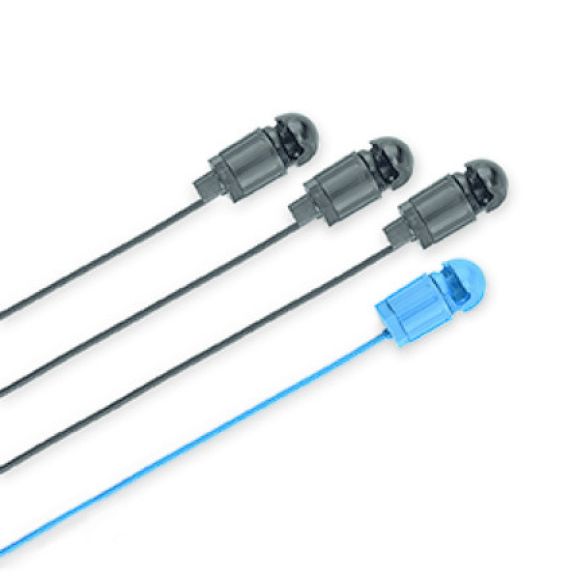

• Three Phase includes: 3 x Black conductor and 1 x Blue conductor

Features:

• Safely tap the measurement voltage with just one turn
• Safe mounting
• 855-8001 and 855-8003 Voltage Taps, including 5 x 25mm 2A fuse
• For insultated conductors up to 16mm2 (6 AWG)
• Line length 3 Metres

Product Specification

General specifications:

• Nominal voltage: 400 VAC
• Max. permissible continuous current: 2 A
• Max. voltage drop at output: < 500 mV AC
• Test voltage: 3 kV, 50 Hz, 1 min
• Degree of pollution: 2
• Rated surge voltage: 6 kV
• Overvoltage category: III
• Output short circuit protection: 6 kA at 400 V/50 Hz

Environmental requirements:

• Ambient operating temperature: -5 °C ... +55 °C
• Storage temperature: -20 °C … +70 °C
• Relative humidity: 5 % … 85 % (non-condensing)
• Max. operating altitude: 2000
• Safety and protection:
• Degree of protection: IP20

Connection and mounting type:

• Assembly: on insulated round conductor, IDC connection
• Type of cable, cable length Secondary side: flexible, 3 m long, 1.0 mm² (17 AWG) cross section, with ferrule

Standards and approvals:

• Conformity marking: 1
• Standards/Specifications: EN 60998-1:2004; EN 60998-2-3:2004; EN 60947-7-3:2009; EN 60721-3-3:1996;

Product Downloads

• Wago Voltage Taps 855 Series Datasheet (0.52MB)
