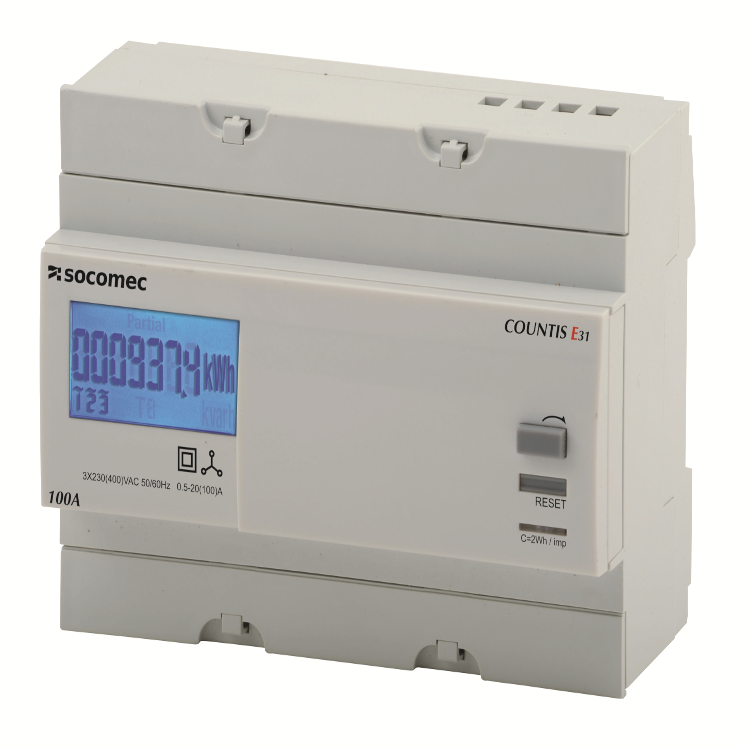

Socomec Countis E30 3 Phase Energy Meter 100A Direct Connection Series

  • Accuracy: 1%
  • Dimensions: 126 x 90 x 62.5mm W x H x D (7 Module)
  • Pulsed output
  • Input: 100A Direct Connection
Enquire Now

Product Details

The COUNTIS E30 is an electrical Energy meter designed for three-phase network (both 3 and 4 wire).

It's usage is for direct connections up to 100 Amps.

Socomec E30 Series have 6 models:

  • E30      Pulse output (4825-3005)
  • E31      Dual tariff (2 partial counters) + Pulse output (4825-3006)
  • E32      Dual tariff + MID (Reset impossible) + Pulse output (4825-3007)
  • E33      Dual tariff + RS485 MODBUS communication (4825-3012)
  • E34      Dual tariff + RS485 MODBUS communication + MID (Reset impossible) (4825-3013)
  • E35      Dual tariff + M-BUS communication (4825-3025)
  • E36      Dual tariff + M-BUS communication + MID (Reset impossible) (4825-3026)

Product Specification

Current measurement

  •   Type: 100A Direct Connected
  •   Input consumption: 0.5 VA max. per phase
  •   Overload: 3000 A / 10 ms
  •   Sustained overload: 100A
  •   Minimum current measured: 80 mA

Voltage measurement

  •   Range of measurement: 230-400 V +/- 20%
  •   Consumption on inrush (VA): 2
  •   Sustained overload: 280 V

Energy accuracy

  •   Active (according to IEC 62053-21): Class 1

Power supply

  •   Self supplied: Yes
  •   Frequency: 50 / 60 Hz

Output (pulsed)

  •   Number: 1
  •   Type phototransistor IEC 62053-31: Class A
  •   Fixed weight of impulses: 100 Wh
  •   Impulse duration: 100 ms

Operating conditions

  •   Operating temperature: -10 to 55 °C
  •   Storage temperature: -20 to 70 °C
  •   Relative humidity: 85 %

Communication

  •   Link: RS485
  •   Type: 2-3 half duplex wires
  •   Protocol: JBUS/MODBUS in RTU mode
  •   BUS/MODBUS® speed: 3800-38400 bauds

 Case Type

  •   Type: Modular
  •   Number of optional modules: 7
  •   Dimensions: 126 x 90 x 62.5 mm (W x H x D)
  •   Case protection index: IP20
  •   Front protection rating: IP51

  Display type

  •   Backlit LCD display
  •   Rigid cable connection section: 2.5 to 35 mm2
  •   Flexible cable connection section: 2.5 to 35 mm2
  •   Weight: 490 g
