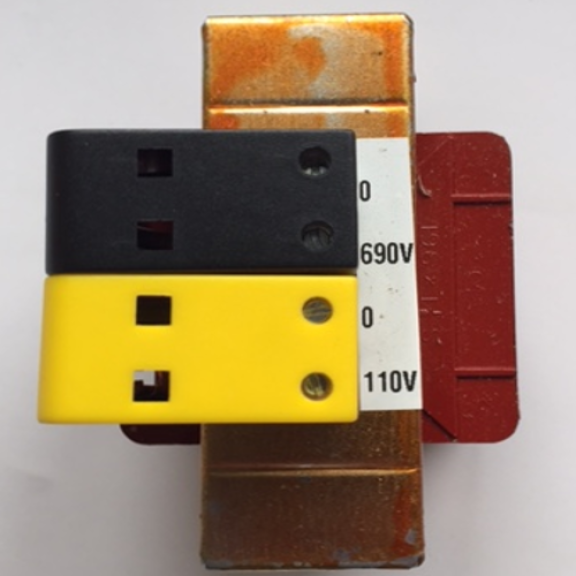

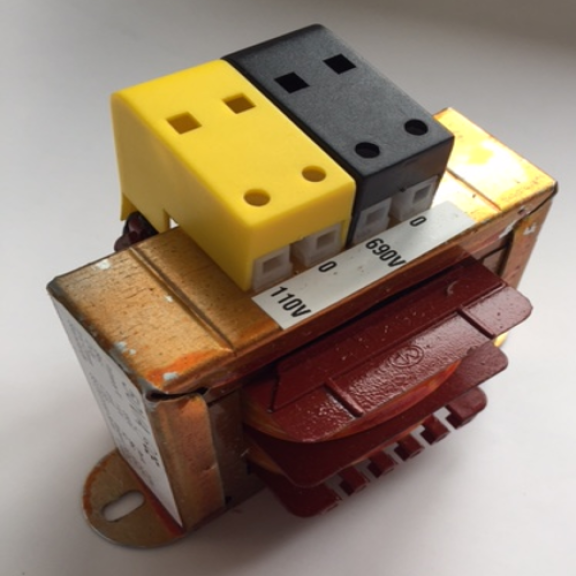

Single Phase Voltage Transformer (690V to 110V)

Product Details

Single Phase Voltage Transformer for use with HV meters (110V inputs)

Product Specification

• Primary Voltage: 690V
• Secondary Voltage: 110V
• Primary Amperage:0.07A
• Secondary Amperage: 0.45A
• VA: 50VA
• Frequency: 50/60 Hz
• Duty: Cont
• Industry Class: F-155
• Standards: BS EN 61558
• Ambient: 30Deg C

Product Downloads

• Camax Single Phase VT Diagram (0.07MB)
