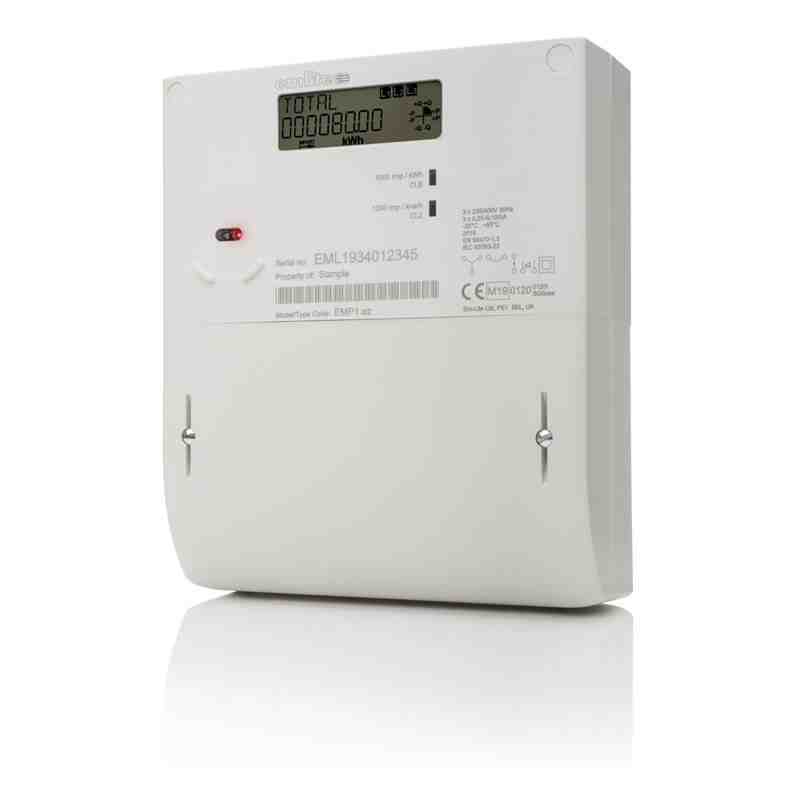

Emlite EMP1.AV Three Phase 100A MID kWh Meter

  • Fully MID approved
  • 4 quadrant power measurement (Import and Export, Active and Reactive Energy)
  • Optional Power Quality Information – Volts, Current, Power etc.
  • Optional pulsed output
  • Solid brass terminals
  • Multiple terminal cover options: Short & Extended (Standard)
  • Clear easy to read 8 digit LCD with specific symbols for different quantities.
Enquire Now

Product Details

Emlite EMP1.AV Three phase meter offers a simple and highly accurate solution for domestic, commercial, Solar PV and light industrial applications.

Product Specification

Nominal voltage: 3x230v

Voltage withstand: 400V continuously

Nominal frequency: 50Hz, variation ±5%

Base current (Iref): 5, 10, 15 and 20*

Maximum (Imax): 100A

Active energy: Class B, to EN 50470 1-3*

Reactive Energy: Class 2, to IEC 62053–23

Temperature range: -25°C to +55°C

Ingress protection: IP54, to BS EN60529

Terminal arrangement: DIN43857-Part 2, fixing centres of 150±1mm

Main terminal size: 8.2mmø ± 0.2

Terminal construction: Solid brass

Dimensions (WxHxD): 170 x 200.2 x 65mm
