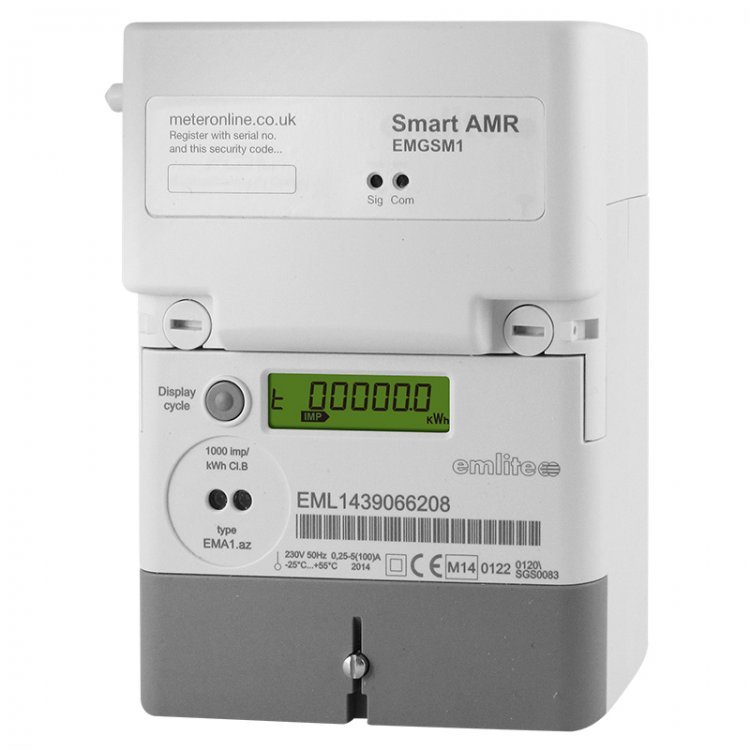

Emlite EMGSM1 MID

  • Fully MID approved
  • GSM Signal Strength Display
  • Available Networks Display
  • Optimised Internal Antenna
  • Simple SIM card fitting
  • External Antenna option
  • Time-of-use rate switching
  • Modular design
  • Measures Import and Export, Active and Reactive Energy



Enquire Now

Product Details

Designed for the collection of micro-generation metering data, The EMGSM1 is a direct connected, single phase smart meter that specializes in collecting the generation readings of renewable energy installations. The meter has a modular design and is fully MID approved.

Product Specification

Electrical:

  • Nominal voltage: 220V—240V
  • Maximum voltage: 276V
  • Voltage withstand: 415V continuously
  • Nominal frequency: 50Hz
  • Frequency variation: ± 5%
  • Basic current (Iref): 5, 10, 15 and 20A
  • Maximum (Imax): 100A

Metrology:

  • Accuracy Active energy: Class B, to EN 50470 1-3
  • Reactive energy: Class 2, to IEC 62053 –23

Environmental:

  • Temperature Range: -25°C to +55°C
  • Ingress protection: IP52, to BS EN 60529

Physical:

  • Terminal arrangement: BS 7856
  • Main Terminal: size 8.2 mm diameter
  • Terminal Construction: solid brass

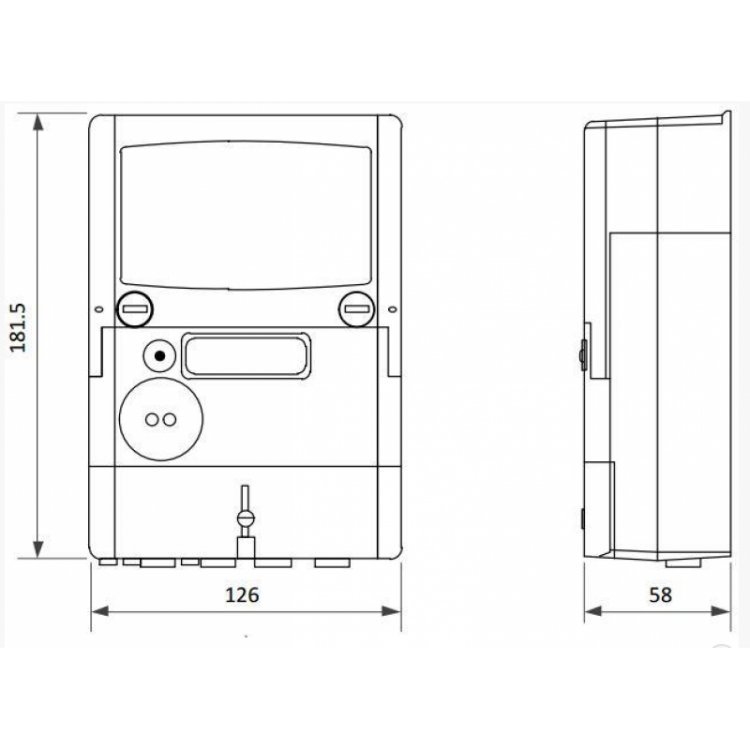

  • Dimensions (including module): 182H×126W×68D
