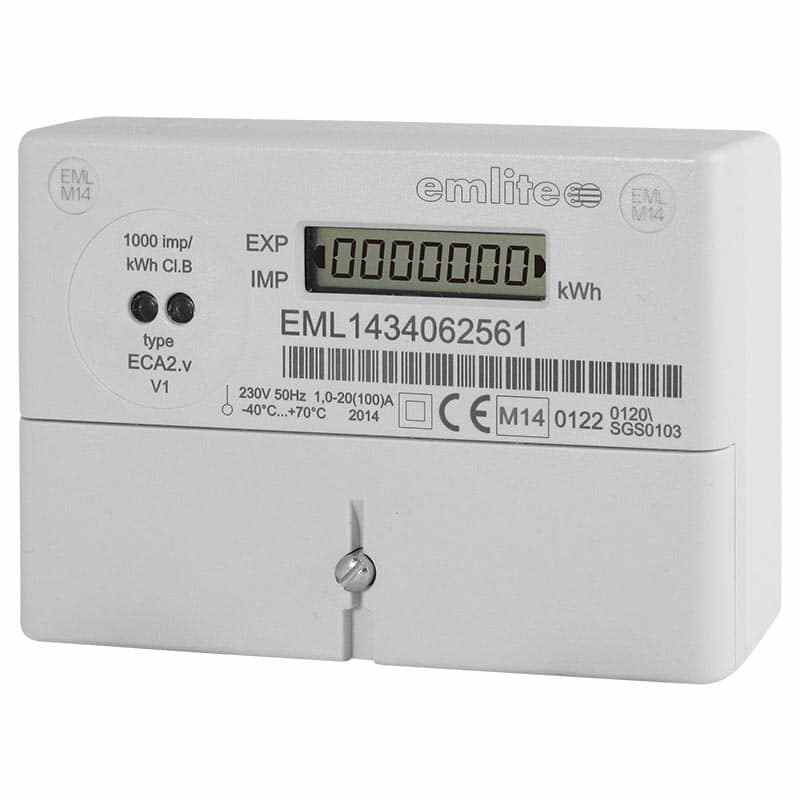

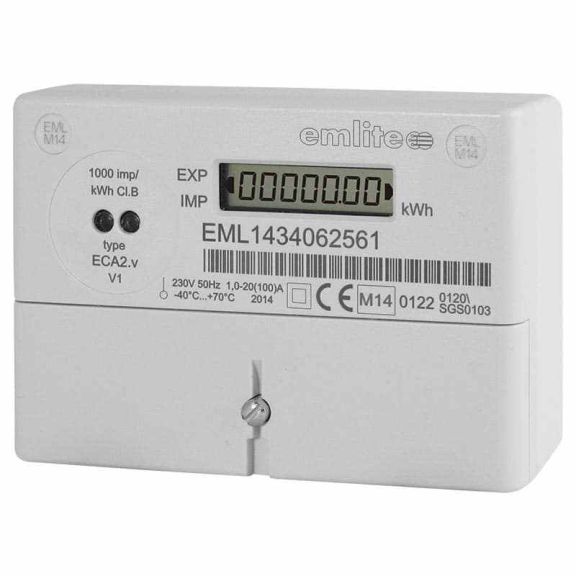

Emlite ECA2 MID Single Phase 20-100A Direct Connected Meter

Available Options:

  • ECA2
  • ECA2.V Pulse Version
Enquire Now

Product Details

Emlite's ECA2 is a Single Phase 20-100A MID (2004/22/EC) approved meter. It provides measurements of active (kWh) energy with registers shown on a large, easy to read LCD display. The meter features an optical probe conforming to IEC 629056-21, allowing meter readings to be collected electronically using a standard probe and software tool. The port also allows for configuration of the meter.

Product Specification

Nominal Voltage220 - 240V, 276V max
Voltage Withstand415V (maximum 6 hours)
Nominal Frequency50Hz, variation ± 5%
Basic Current (Iref)5, 10, 15 and 20A
Maximum (Imax)100A (140% overcurrent)
Accuracy - Active EnergyClass B 1%, to EN50470 1-3
Temperature Range-40°C to +70°C
Ingress ProtectionIP52 to BS 60529
Terminal ArrangementBS 7856
Main Terminal Size8.2mm diameter
Terminal ConstructionSolid brass
Dimensions (W x H x D)125 x 91 x 40mm
