DL3N1-35-125/0.1 Current Transformer

Product Details

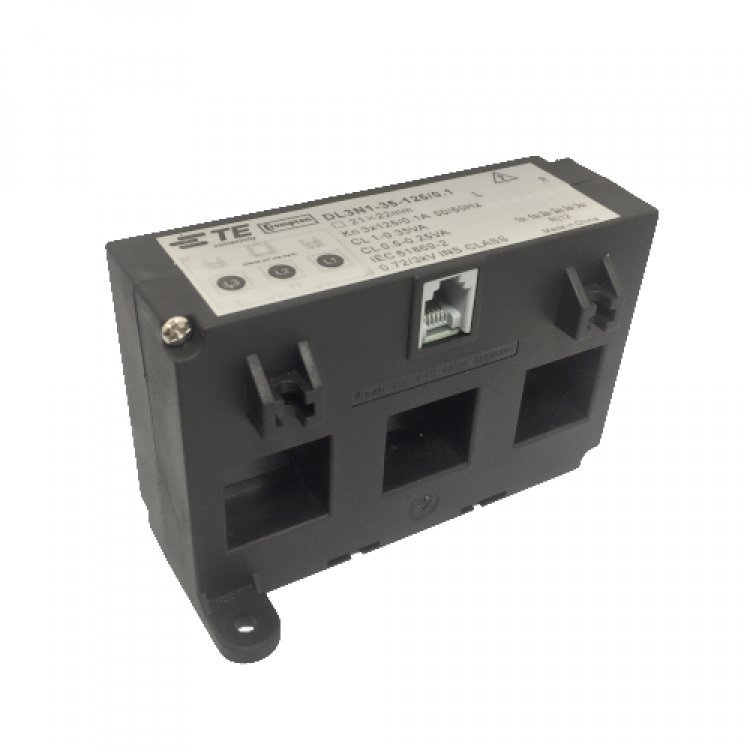

The 3 in 1 DL3N1-35-125/0.1 current transformer is used with either the Integra 1211 or the Integra DL1. The molding case contains three traditional current transformers that can be installed using a three phase circuit breaker to ensure an easy installation. The RJ12 connection provides fast connections, and prevents errors from occurring during the installation process.

Product Specification

• Ratio: 125/0.1
• VA At Class 0.5: 0.25
• VA At Class 0.1: 0.35
• System voltage: 720V maximum
• Test voltage: 3kV for 1 minute
• System frequency: 50Hz or 60Hz
• Primary ratings: 100mA AC rms. per CT
• Overload withstand: 1.2 x rated current continuously
• Enclosure: Flame retardant grade classified UL94V-O
• Operating temperature: -20°C to +85°C
• Compliant with accuracy: IEC/EN 60044-1 Class 0.5, Class 1

Product Downloads

• Brochure (0.46MB)
