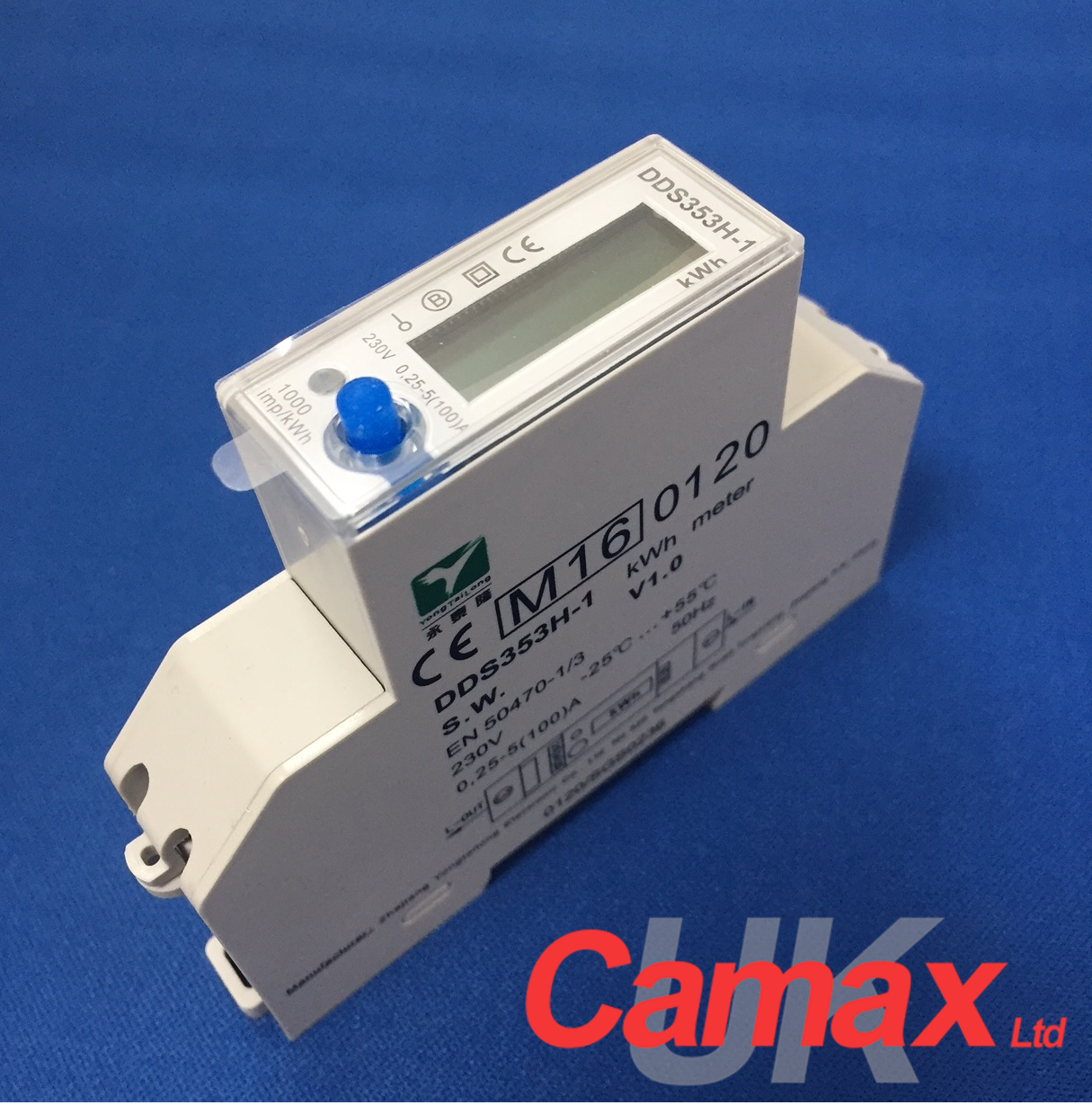

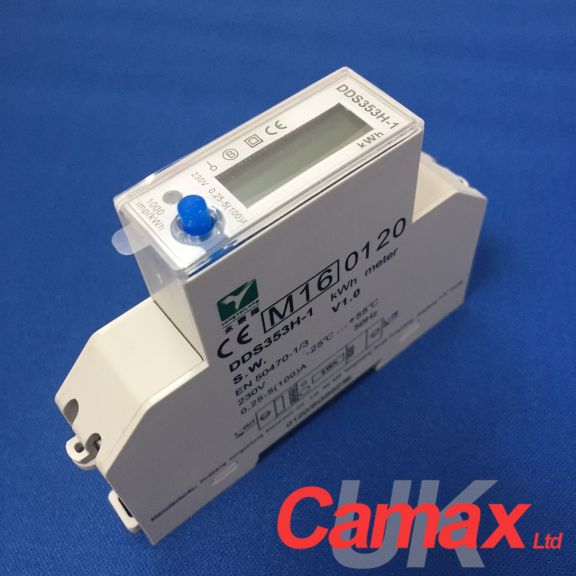

DDS353H-1 MID Certified 100A kWh Meter with Pulse

  • MID Approved
  • Housing: 1-DIN Module
  • Single Phase
  • Current: 45A Direct Connected
  • Voltage: 230/240V (+/- 20%)
  • Pulse output
  • LCD Display: 5+2= 99
Enquire Now

Product Details

The DDS353H-1 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).

1 Built-in pulse output as standard

Product Specification

  • MID Approved
  • Housing: 1-DIN Module
  • Voltage: 230V ± 20%
  • Current: (5) 100A
  • Accuracy Class: B
  • Standard: EN50470-1 / EN50470-3
  • Frequency: 50Hz ±10%
  • Pulse output
  • Display: LCD 5+2= 99999.99kW
  • Power Consumption: ≤8VA ≤0.4W
  • Temperature Range: -25⁰C……+55⁰C
  • Pulse Width: 80mS
  • Max Terminal Wire: 12mm₂
