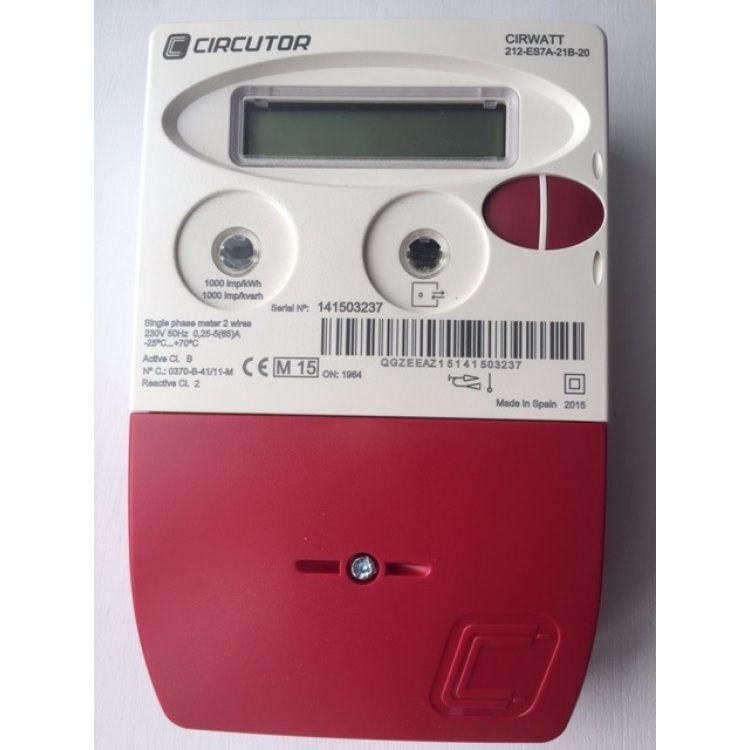

Circutor Cirwatt B102 65A Single Phase MID meter with Modbus RS485 and Pulse output (QBM83)

  • Accuracy: Class 1%
  • Dimensions: 129W x 215H
  • Input: 65A
  • MID Certified
  • Modbus RS485 communication
  • Four Tariffs
Enquire Now

Product Details

The Cirwatt B102 65A Single Phase MID energy meter has Class 1 accuracy on active and Class 2 on reactive energy with the option of Modbus via RS485 (Up to 32 meters daisy-chained)

Four Tariffs are available with this model allows the user to fulfill all domestic requirements necessary (Relay output)

The meter has a memory to record for 400 days with 12 billing closures for Power Quality information

Pulse Output is also available with this meter

Dimensions: 129W x 215H

Product Specification

Power Supply
Nominal Voltage: 127 V or 230V
Tolerance: 80%/115% Un
Consumption: <2W; 10 VA
Frequency: 50Hz or 60Hz

Voltage measurement
Connection: Asymmetrical or Symmetrical
Reference Voltage: 127V or 230V
Frequency: 50Hz or 60Hz

Current measurement
Nominal reference current: 5A
Max Current: 65A
Minimum Current: 250Ma
Starting Current: 20Ma

Active energy: Class 1-IEC 62053-21/ Class B- EN 50470
Reactive energy: Class 2- IEC 62053-21


Modbus: Via RS485
Pulse output


Casing: 129mm (Width) x 215mm (Height) x 66mm (Depth)
