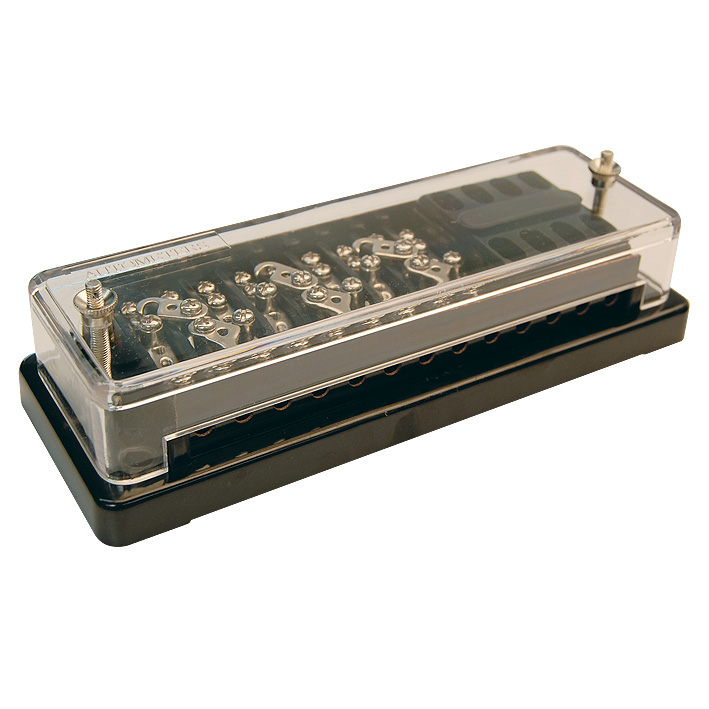

ATB 23008 meter Terminal/Test Block (Front Connected)

  • Versatile terminal arrangement
  • 4 fully shrouded Voltage terminals
  • 3 sets of three terminals for current connections
  • Teminal cover with independent seal position
  • High quality nickel plated brass terminals
  • Reversible insulation barriers
Enquire Now

Product Details

The ATB 23008 is a front connected current and Voltage test terminal block with 13 separate terminals. There are 3 sets of current terminals; each set consists of 3 individual insulated terminals which can be linked across enabling a shorting link across the phase, and 4 separately insulated voltage terminals.

The ATB 23008 is manufactured with black Bakelite back and a clear polycarbonate cover, all screws and links are nickel plated brass. The terminal connections at the back are all M5.

Dimensions - W: 220 x H: 80 x D 70 mm
