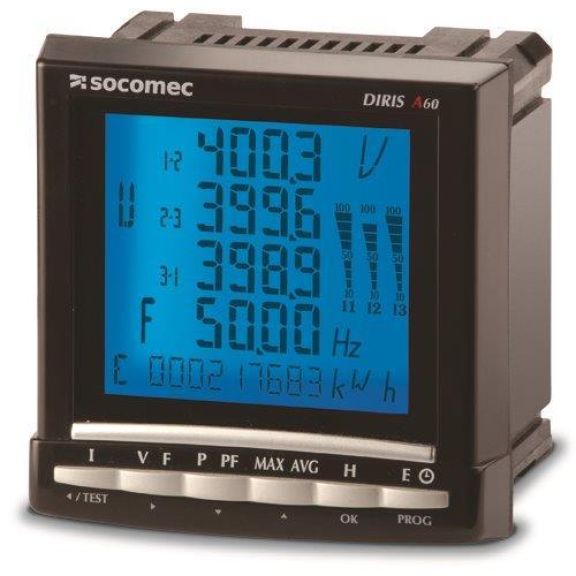

Socomec Diris A60 Multi-function 3 Phase Electricity meter DIN 96 (4825-0207)

  • CT Ratio; Programmable up to 9999A
  • DIN-96 Panel Mount
  • High resolution LCD Screen
  • Multi-function parameters
  • Optional Modules available (Modbus and Pulse)
Enquire Now

Product Details

Camax are now selling the Socomec DIRIS A60 panel mounted multi-function meter. Its functions are very similar to that of the DIRIS A40 with the option of enhanced data logging functions, recording curves for power quality. The meter is CT connected with a maximum primary load of 9999A and a secondary of 1 to 5A (depending on the CT ratio).

The meter directly displays a number of multi-measurement and metering values including:+/- kWh, +/- kVARh, kVAh, I, U, V, F, P, Q, S, PF etc

Compliant with IEC 61557-12

Conformity to standard EN 50160

Optional plug-in modules are available for: Pulse Outputs, Analog output, Ethernet and Modbus communications.

Product Specification

Current

  • Via CT Primary: 9999A (User-Programmable)
  • Via CT Secondary: 1 OR 5
  • Measurement range: 0-11kA
  • Input consumption :<0.1VA
  • Measurement updating period 1s
  • Accuracy: 0.2%
  • Permanent overload: 6A
  • Intermittent overload: 10l for 1 s

Voltage

  • DC between phases: 50/700VAC
  • DC between phase and neutral:28/404VAC
  • Primary: 500,000VAC
  • Secondary:60,110,110,173,190 VAC
  • Frequency:-60Hz
  • Input consumption:<0.1VA
  • Accuracy:0.2%
  • Permanent overload

Current-voltage product

  • Limit for 1A CT:10,000,000
  • Limit for 5A CT:10,000,000

Power factor measurement

  • Update period: 1s
  • Accuracy: 0.5%

Energy accuracy

  • IEC 62053-22: Class 0.5 s (Active)
  • IEC 62053-23:Class 2 (Reactive)

Power supply

  • AC Voltage:110/400VAC
  • AC tolerance: +- 10%
  • DC Voltage:120/350VDC
  • DC tolerance: +-20%

Communication

  • RS485 MODBUS (extra module)
  • RJ45 port for Ethernet module

Case

  • Panel mount: W96,H96 and D95mm
  • Weight: 450g
