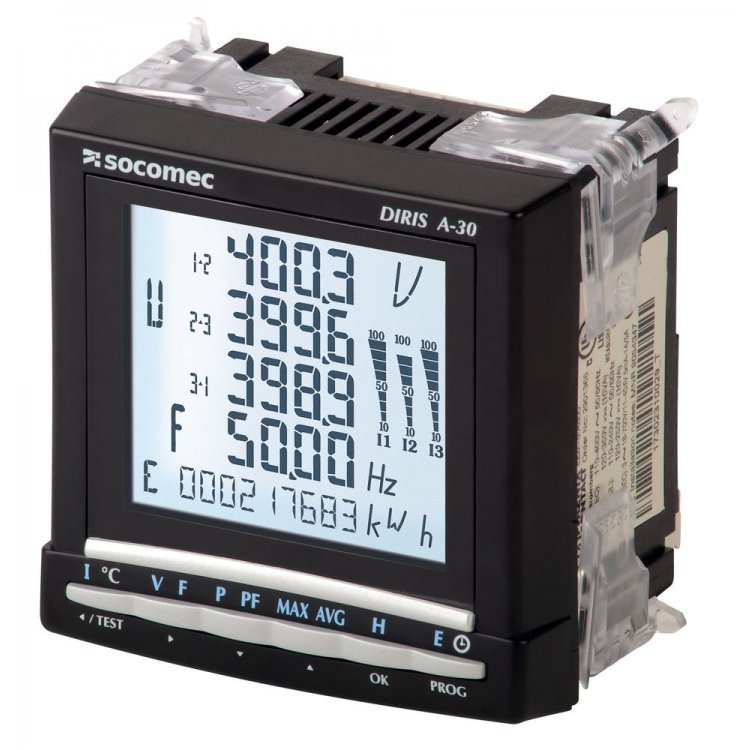

Socomec DIRIS A-30 Power Meter (4825 0403)

Product Details

The DIRIS A-30 is a power meter with a wide range of parameters for monitoring electrical distribution and completing energy efficiency projects. Measurements can be accessed remotely using energy efficiency software packages and additional modules can be paired with the DIRIS A-30 for advanced flexibility.

Product Specification

Measurement of currents on insulated inputs (TRMS):

Via CT primary: 9,999 A

Via CT secondary: 1 or 5 A

Measurement range: 0 … 11 kA

Input consumption: ≤ 0,1 VA

Measurement updating period: 1 s

Accuracy: 0.2%

Permanent overload: 6 A

Intermittent overload: 10 In for 1 s

Voltage measurements (TRMS):

Direct measurement between phases: 50 to 500 VAC

Direct measurement between phase and neutral: 28 to 289 VAC

VT primary measurement: 500,000 VAC

VT secondary measurement: 60, 100, 110, 173, 190 VAC

Frequency: 50 / 60 Hz

Input consumption: ≤ 0,1 VA

Measurement updating period: 1 s

Accuracy: 0.2%

Current - voltage product:

Limitation for TC 1 A: 10,000,000

Limitation for TC 5 A: 10,000,000

Power measurement:

Measurement updating period: 1 s

Accuracy: 0.5%

Power factor measurement:

Measurement updating period: 1 s

Accuracy: 0.5%

Frequency measurement:

Measurement range: 45 … 65 Hz

Measurement updating period: 1 s

Accuracy: 0.1%

Energy accuracy:

Active (according to IEC 62053-22): Class 0.5 S

Reactive (according to IEC 62053-23): Class 2

Auxiliary power supply:

Alternative voltage:  110 …400 VAC

AC tolerance: ± 10 %

Direct current: 120 … 350 VDC / 12 … 48 VDC

DC tolerance: ± 20 % / - 6 … + 20 %

Frequency: 50 / 60 Hz

Power consumption: ≤ 10 VA

Operating conditions:

Operating temperature range: -10 to +55°C

Storage temperature: -20 to 85°C

Relative humidity: 95%

Case:

Type: Integratable

Dimensions (W x H x D): 96 x 96 x 60 mm

Case degree of protection: IP30

Front degree of protection: IP52

Display type: Backlit LCD display

Type of terminal strips: Fixed or detachable

Section of connection for voltages and other terminals: 0,2 … 2.5 mm2

Section of connection for currents: 0.5 … 6 mm2

Weight: 400 g

Product Downloads

• Data Sheet (2.03MB)
