Schneider PM8000 Energy Meter Series

• Panel or DIN Rail mounting (depending on model)
• Variety of models with or without display
• Fast configuration due to various form factors, pluggable connectors and a free setup application
• Colour, graphical, high-resolution display offers local data access with multi-language support
• High-accuracy energy metering
• Minimum/maximum data logging
• Historical trend logging for energy, demand, power factor or any other parameter
• Event logging
• Configurable alarms; to trigger recording, perform control, send email or text messages
• Dual-port Ethernet supports daisy-chaining, redundant loops and multiple protocols
• CT and VT polarity reversible via front panel, web page or software
• Customisable on-board web pages
• Email ’push’ historical data files
• RS485 serial port
• Ethernet-to-serial gateway
• Modbus master functionality
• Secure, configurable user accounts

Enquire Now

Product Details

Schneider Electric PM8000 series meters help you improve energy efficiency, sub-bill or allocate costs and improve productivity. These improvements are done by tracking consumption and identifying conditions that could pose risks to equipment and processes.

The power meters are easy to install and have simple networking, making energy information accessible, while integration with StruxureWare applications makes information relevant and actionable (FTP Functionality in COMTRADE Format - IEC 60255-24 edition 2001-05).

PM8000 Series Models:

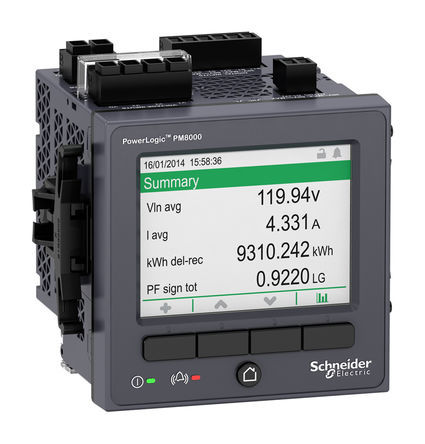

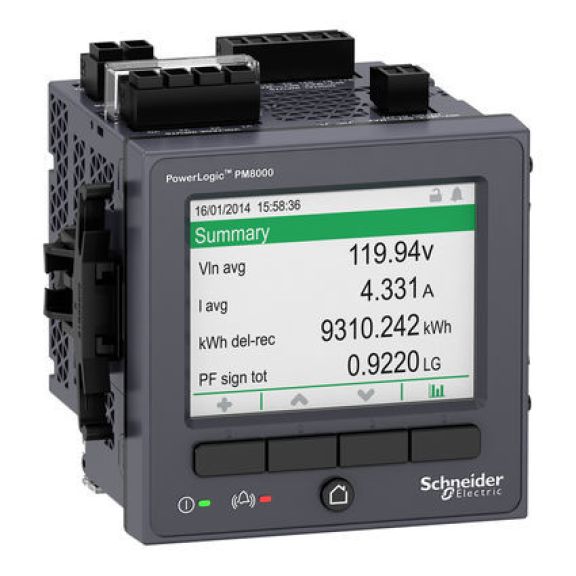

METSEPM8240 - Non MID Panel Mount with Integrated display
METSEPM82401 - MID Panel Mount with Integrated display

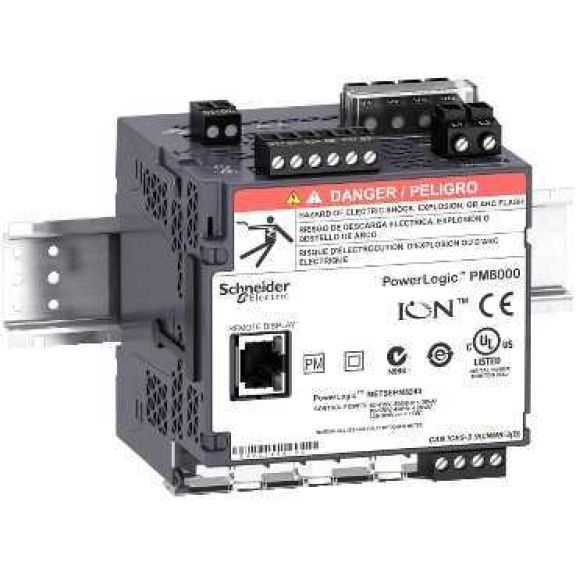

METSEPM8243 - DIN-Rail Mount Meter

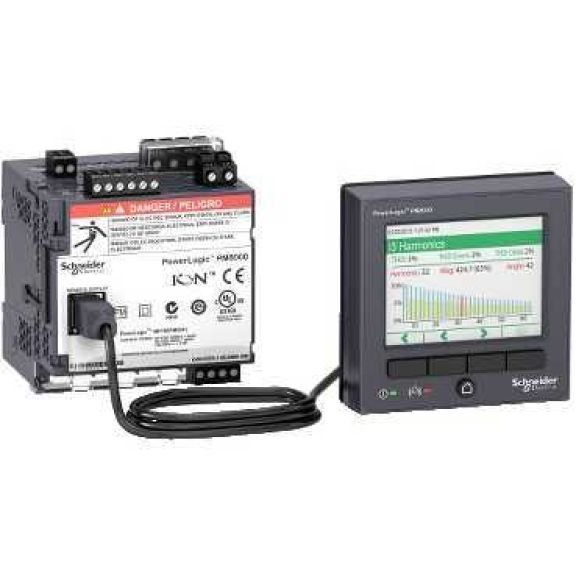

METSEPM8244 - DIN-Rail Mount Meter remote display

Accessories:

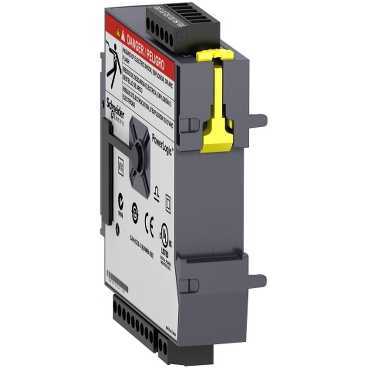

METSEPM89M2600 - I/O module, 2 relay outputs, 6 digital inputs

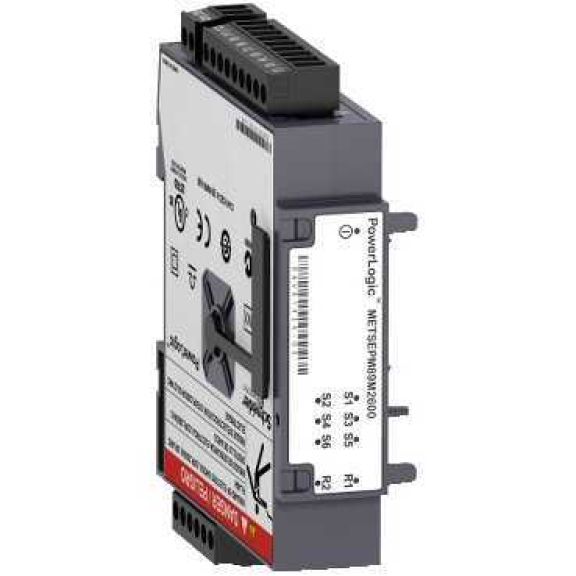

METSEPM89M0024 - I/O module, 2 analog outputs, 4 analog inputs
METSEPM89RD96 - Remote display, 3 m cable, mounting hardware for 30 mm hole (nut & centering pin), mounting hardware for DIN96 cut-out (92 x 92 mm) adapter plate

Product Specification

  • Display Type: LCD
  • Number of Phases: 3
  • Depth: 77.5mm
  • Meter Accuracy:Class 0.2S accuracy IEC 62053-22, ANSI C12.20 Class 0.2 (active energy)
  • Memory: Memory consumption for each record (in Bytes) = [(number of parameters x 5) + 8]
  • Minimum Temperature: -25°C
  • Maximum Temperature: +70°C
  • Maximum Measurement: 10 A, 69 Hz, 400 (Phase and Neutral) V ac, 690 (Phase) V ac
  • Minimum Measurement: 42 Hz, 50 mA, 57 (Phase and Neutral) V ac, 100 (Phase) V ac
  • Series: PM8000
  • Meter Type: Electromechanical
  • Measurement Range: 42 → 69 Hz, 50 mA → 10 A, 57 → 400 (Phase and Neutral) V ac, 100 → 690 (Phase) V ac
  • Approvals: CE, CSA C22.2 No 61010-1, CULus, EN 61010-1, IEC 60529, IEC 61010-1, IEC 61557-12, IEC 62052-11, IEC 62053-22, IEC 62053-24, N998, UL 61010-1
