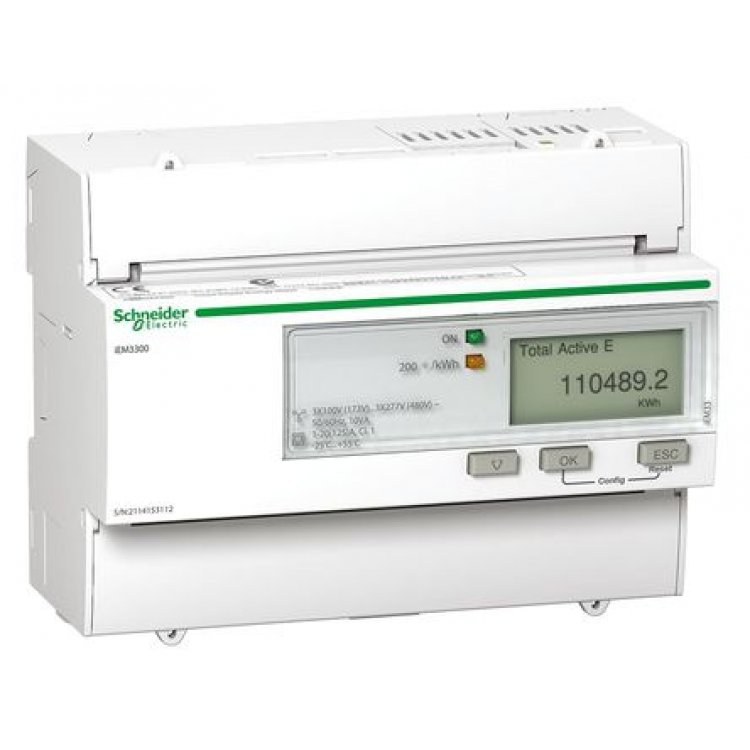

Schneider IEM3300 125A Direct Connected Energy Meter Series

  • Active Energy Accuracy: 1%
  • Dimensions: 7 DIN Module
  • Includes internal real-time clock
  • Inputs: 125A
  • Voltage- WYE:100-277V L-N, 173-480V L-L 20%, Delta: 173-480 V L-L 20%
Enquire Now

Product Details

Camax are now supplying the IEM 3000 range which includes the IEM3300 basic energy meter(kWh only readings).

The meter is 125A direct connect with a 7 DIN module dimension (18mm per module), conforming to Class A: IEC-62053-12& IEC-61557-12 & Class B: EN50470 standards.

IEM3300 Models:

  • iEM3300 kWh meter with partial counter (A9MEM3300)
  • iEM3310 kWh meter with partial counter and pulse output, MID certified (A9MEM3310)
  • iEM3335 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. M-Bus communication, digital I/O and MID certified (A9MEM3335)
  • iEM3350 kWh meter with partial counter and current, voltage, power measurement. Modbus communication (A9MEM3350)
  • iEM3355 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. Modbus communication, digital I/O, MID certified (A9MEM3355)
  • iEM3365 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. BACnet communication, digital I/O and MID certified (A9MEM3365)
  • iEM3375 energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement. LON communication, digital input and MID certified (A9MEM3375)

Product Specification

Power system inputs IEM3300

  • Measured Voltage- Wye:100-277 V L-N, 173-480V V L-L 20% Delta: 173-480 V L-L 20%
  • Maximum current- 125A
  • Measured current-1A to 125A
  • Overload-332 V L-N or 575 V L-L
  • Voltage impedance- 6mW
  • Current impedance-<0.2mW
  • Frequency- 50/60Hz +/-10%
  • Minimum wire temperature rating required- 105C (221F)
  • Burden- <10VA at  125A
  • Wire-50mm2/1AWG
  • Wire strip length-13mm/0.5 in
  • Torque-3.5Nm/30.9 in-lb
