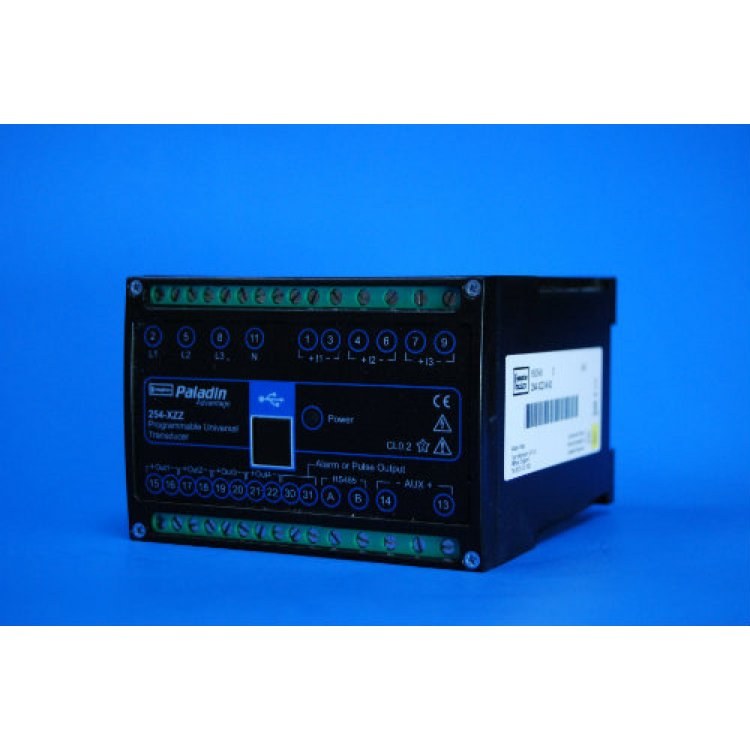

Paladin Advantage Universal Programmable Transducer (254-XZZ)

Product Details

The Paladin Advantage, 254-XZZ, is a programmable transducer which provides measurement isolation and conversion of all main electrical parameters into an industry standard DC output signal.

The 254-XZZ can be used in Single and Three-phase balanced or un-balanced Three or Four-wire electrical systems. 254-XZZ's have an Accuracy of CL0.2 and includes: RS485 Modbus RTU communications protocol and Pulse/Alarm output as standard.

The 254-XZZ is an accurate device for the conversion of all main electrical parameters into a Voltage or mA output and provides measurement, isolation and conversion of up to 4 user defined inputs and outputs. The device is supplied programmed to the users requirements but can be easily be re-programmed to suit any application.

Product Specification

• Nominal input Voltage: 57.7 – 277V AC L-N (100 – 480V L-L)
• Auxiliary: 80 -260V AC/DC (+/-10%) 45-66Hz, 6VA or
• 20 - 60V AC/DC (+/-10%) 45-66Hz, 6VA
• Alarm/Pulse output
• Modbus RTU
• Accuracy: Voltage: <0.2
• Accuracy: Current: <0.2
• Voltage range: 5% to 120% for nominal
• Current range:5% to 120% for nominal
• THD range: Up to 31st
• Enclosure style DIN-rail mounting
• Dimensions 100 x 79 x 118mm
