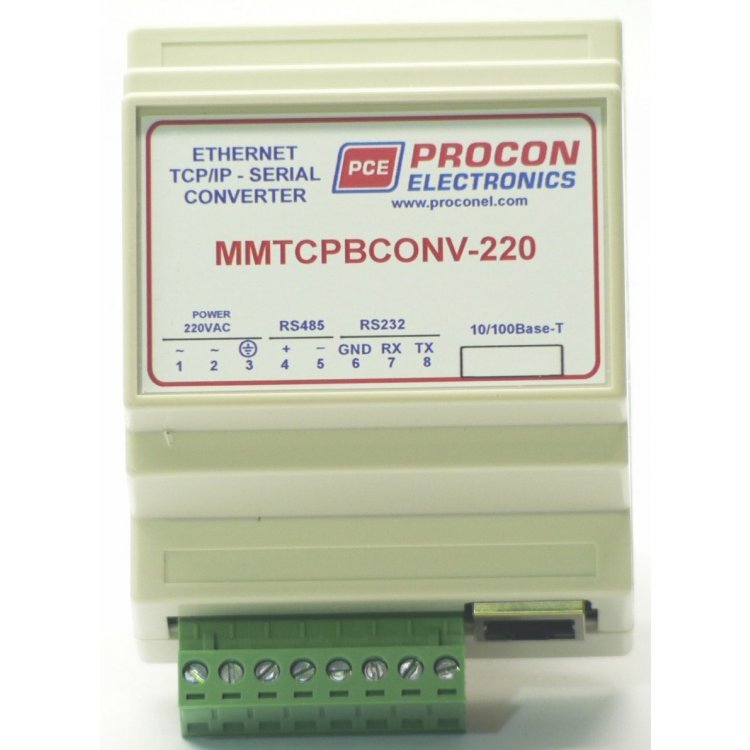

MMTCPBCONV-220 – TCP / RS485 Ethernet/Serial Gateway
- 10/100 Base-TX Ethernet Network
- Includes web server for configuration
- Compact design (4 DIN-Modules wide)
Product Details
The Ethernet /Serial converters enable RS232/485 to a 10/100 Base-TX Ethernet network
The unit includes a web server which allows users to configure parameters. Parameters include: IP address, serial data format, and operating mode
Input: 220VAC 1.5VA 50Hz
Product Specification
| Power Supply | MMTCPBCONV-VDC | 90mA @ 10VDC / 40mA @ 26VDC |
| MMTCPBCONV-110 | 1.5VA @ 110VAC 60Hz | |
| MMTCPBCONV-220 | 1.5VA @ 220VAC 50Hz | |
| Ethernet | 10/100 Mbits/s | 10/100Base-TX |
| Connector | RJ485 | |
| Serial | RS232 | 3 Wire , TX,RX,GND |
| RS485 | 2 Wire Multidrop twisted pair + GND | |
| Baud Rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 | |
| Data Bits | 5, 6, 7, 8 | |
| Parity | none, even, odd | |
| Stop Bits | 1, 2 | |
| Temperature | Operating Temperature | -20°C to + 75°C |
| Storage Temperature | -20°C to + 75°C | |
| Connectors | Power and Comms | 8 way screw connector |
| Humidity | Up to 95% non condensing |
