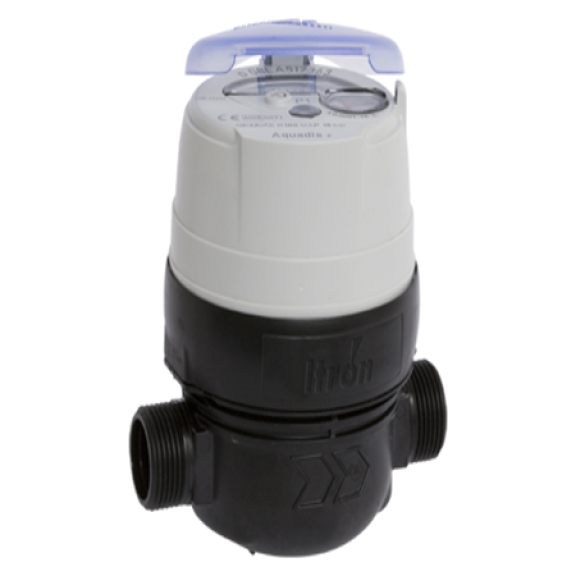

Itron Aquadis+ composite body with 2.5 Q/N MP 16 and Pulsed Output (AQP15110CTVMQBR160)
- MID - Directive 2004/22/EC of the European Parliament
- Radio walk-by systems
- QP (Nominal flow rate): 2.5 m3/hr
- Pressure: 16 Bar max operating
- Horizontal or vertical installation
Product Details
Aquadis+ is a compact piston type volumetric water meter that was designed specifically for residential metering applications.
The meter is approved class C + D In any position and has a copper alloy body. The meter is compliant to BS 5728 for cold portable water meters and EN 14154:2005.
These meters can be fitted in any position and all have BSP threads (1/2") , maximum working pressure 16 bar and maximum working temperature 50°C.
Extra options (If specified)
- M-Bus wired systems (walk-by or fixed network)
- Pulse output
Product Specification
Technical Specification
- MID Metrology Class (R) all positions: 50min/400max
- MID Type Approval Number: LNE 13636
- Nominal flow rate (Q3): 1.6 - 2.5 m3/h
- Standard Ratio (Q3/Q1): 100 - 160
- Minimum Flow Rate (Q1): l/h 16 - 15.6
- Transitional Flow Rate (Q2): l/h 25.6 - 25
- Overload Flow Rate (Q4): m3/h 2 - 3.12
- Typical Starting Flow Rate: < 1 l/h
- Accuracy ± 5%: 4 l/h
- Accuracy ± 2%: 8 l/h
- Pressure Loss Class at Q3: 0.25 - 0.63 bar
- Maximum Admissible Pressure (MAP): 16 bar
- Testing pressure: 25 bar
- Maximum Operating Temperature (MAT) - °C 50 **
- Climatic Environment: 5 – 55 °C
- Indication Range: 99999.999 m3
- Minimum Scale: Interval 0.02 L
Nominal diameter (DN) 15 Meter Thread 15 G 3/4” 20mm x 27mm
- A (Length) 110mm – 115mm – 165mm – 170mm
- B 123mm
- C 92mm
- D 26mm
- E 1/2”mm
- F 82mm
- Weight Kg 0.49 (TSN) - 0.57 (TVM)
