IME Conto D4 Three Phase Multi-function Series with Pulse and Modbus
2-3 day lead time
- Input voltage 100 - 400V (P-P)
- B and D MID Certified active energy meter
- DIN-Rail mounting (4-MOD)
- 3 phase (3 or 4 wire) network unbalanced-load
- Active energy class B (EN50470)
- Reactive energy class 2 (EN60253-23)
- Power demand, Power max demand, Phase and neutral current, Phase to phase and phase to neutral voltage, Frequency, Phase active power, Phase reactive power, 3 phase active/reactive and apparent power, Power factor, Hours run
- 5A CT operated
- 230V/400V 50Hz measured voltage
- 8 digit LCD display
- Integrated Communication Protocols are Programmable pulse output and RS485 Modbus RTU
- Pulse duration: 50 – 100 – 200 – 300ms user programmable
- Programmable CT ratio (1...9.999)
- Auxiliary supply 230V 50/60Hz
Product Details

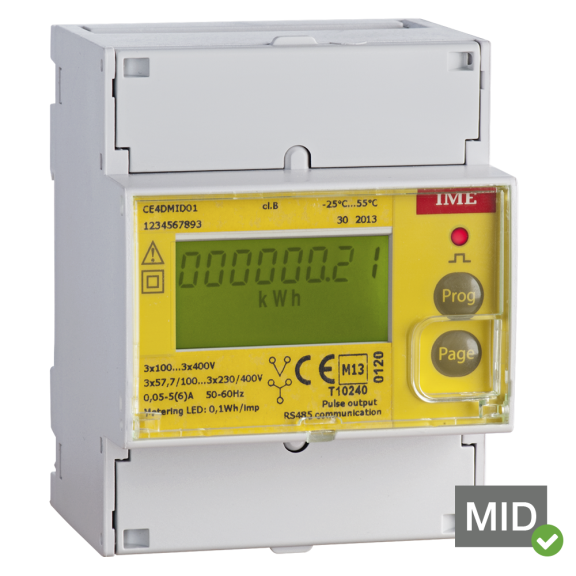

The IME Conto D4-Pt DIN-Rail mounted KWh Multi Function meter offers a cost-effective solution for remote monitoring by Pulse or Modbus communications
Models available (All with Pulse and Modbus as standard):
- IME Conto D4-Pt Single-Phase & Three-Phase 3-4 Network Multifunction Meter - Connection by CT/1A and /5A
- IME Conto D4-Pd Class 1 Three Phase Network 63A Direct Connected Multi Function Energy Meter
- IME Conto D4-Pd MID Certified Three Phase Network Multi Function Meter 63A Direct Connected
- IME Conto D4-Pt CE4DMID01 MID Certified Four Module Three Phase Network MultiFunction Energy Meter - CT Operated
Product Specification
- Input voltage 100 - 400V (P-P)
- B and D MID Certified active energy meter
- DIN-Rail mounting (4-MOD)
- 3 phase (3 or 4 wire) network unbalanced-load
- Active energy class B (EN50470)
- Reactive energy class 2 (EN60253-23)
- Power demand, Power max demand, Phase and neutral current, Phase to phase and phase to neutral voltage, Frequency, Phase active power, Phase reactive power, 3 phase active/reactive and apparent power, Power factor, Hours run
- 5A CT operated
- 230V/400V 50Hz measured voltage
- 8 digit LCD display
- Integrated Communication Protocols are Programmable pulse output and RS485 Modbus RTU
- Pulse duration: 50 – 100 – 200 – 300ms user programmable
- Programmable CT ratio (1...9.999)
- Auxiliary supply 230V 50/60Hz
