Hobut Split-core Current Transformer range with 1M flying lead (CTSCM40)

  • Accuracy: Class 1

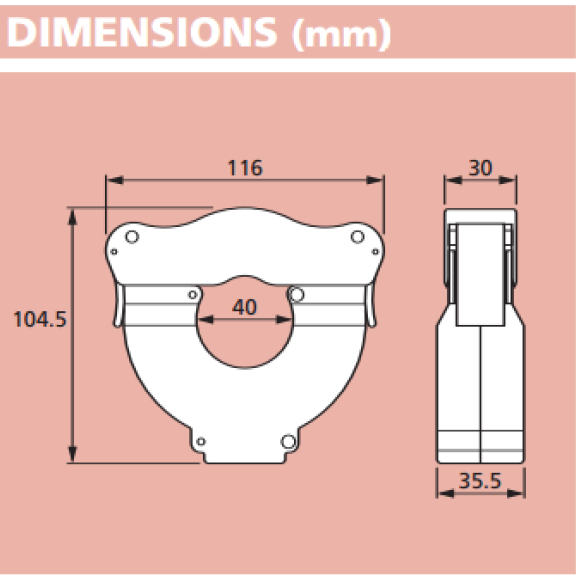

  • Aperture: 40mm (See images)
  • Cable Length: 1M flying lead
  • Current: 100:800A (Depending on Model)
  • Output: 5A
Enquire Now

Product Details

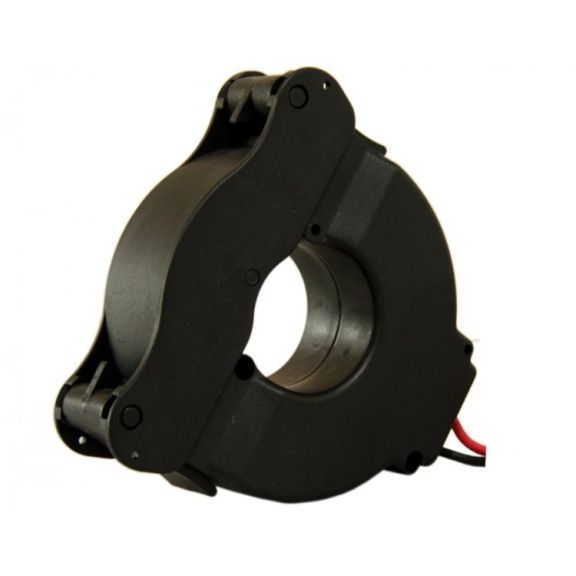

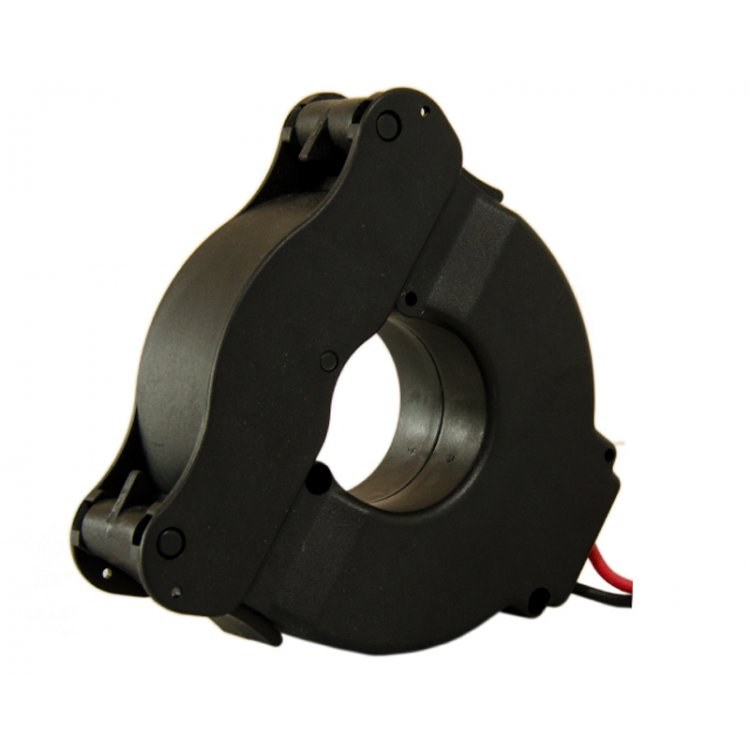

This Split-Core Current Transformer is supplied in a compact moulded case and has a unique clip-together feature. it also comes supplied with 1 metre flying leads.

It is ideal for installation into existing networks without disconnecting cable circuits and the fast action clip function ensures a quick and permanent installation.

CTSCM40 models:

  • 100:5A
  • 150:5A
  • 200:5A
  • 250:5A
  • 300:5A
  • 400:5A
  • 500:5A
  • 600:5A
  • 800:5A

Product Specification

• Conforms to: IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1.
• Rated system voltage: 0.72/3kV.
• Ambient temperature range: -30°C to 80°C.
• Frequency range: 50-60Hz.
• Insulation level: 3kV for 1 minute.
• Continuous Current: 1.2 x rated current.
• Enclosure flame retardancy: UL94VO
