Hobut 160 series (CT160) Wound Primary Current Transformers
- Built in sealable covers.
- Mounting feet supplied.
- DIN rail mounting clip supplied.
- Narrow width - 60mm
Product Details

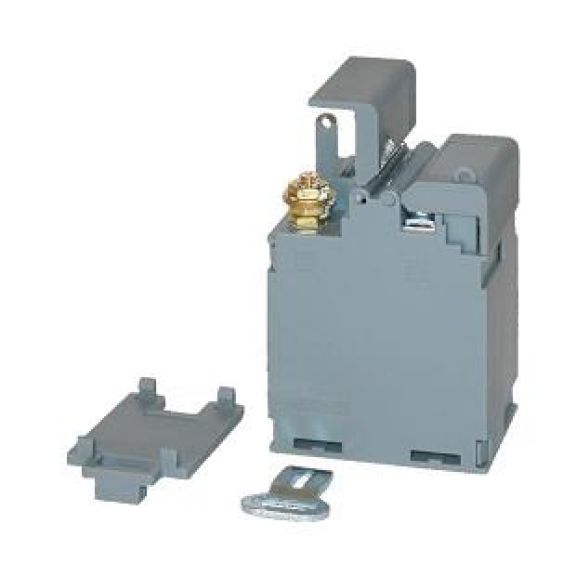

Hobut 160 range of compact low cost moulded case current transformers suitable for primary currents from 1A to 50A with built in terminal covers and M6 screw terminals for Primary Current connection.
Dimensions: Height 85mm Width 60mm and Depth 43mm

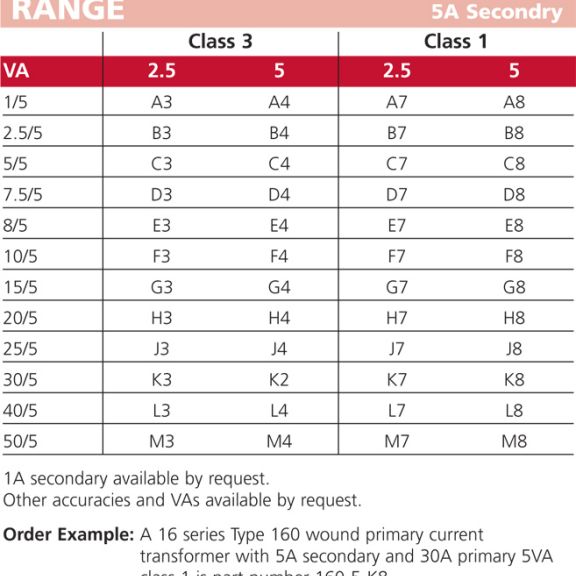

CT160 Models:
- CT160: 1/5A
- CT160: 2.5/5A
- CT160: 5/5A
- CT160: 7.5/5A
- CT160: 8/5A
- CT160: 10/5A
- CT160: 15/5A
Product Specification
- Conforms to IEC185, BS7626, BSEN 60044-1 and IEC 60044-1.
- Rated system voltage 0.72/3kV.
- Ambient temperature range -30ºC to 85ºC.
- Continuous current, 1.2 x rated current
