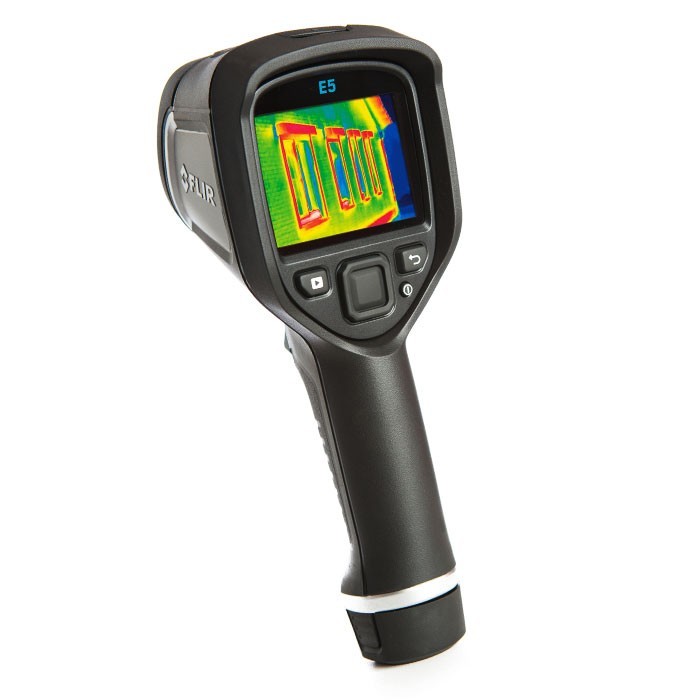

FLIR E5 Thermal Imaging Camera
- Accuracy: ±2% or 2°C
- Colour LCD - Iron, Rainbow and Grey
- Easy-to-use navigation Pad
- High resolution: 120x90 pixels
- Temperature range: -20 to 250°C
- Thumbnail Gallery: Easily review images upon capture
- Software/Reporting: All software is free to download and USB download lead is included
- Picture-in-Picture: Overlays an infrared image over a digital image to locate faults
- Measurement range: Area max/min to identify anomalies
- Battery operating time: 4 hours
- Setup commands: Adaption of units, language, date and time formats
- Memory capacity: 500 sets of images
- File format: Standard JPEG, 14-bit measurement date included
- Weight: 0.575kg
Product Details
Infrared (IR) thermometers are reliable and very useful for single-spot temperature readings, but when scanning large areas, it’s easy to miss critical parts. A thermal imaging camera will instantly reveal possible problem areas whether you’re doing electrical, mechanical, building or property management inspections

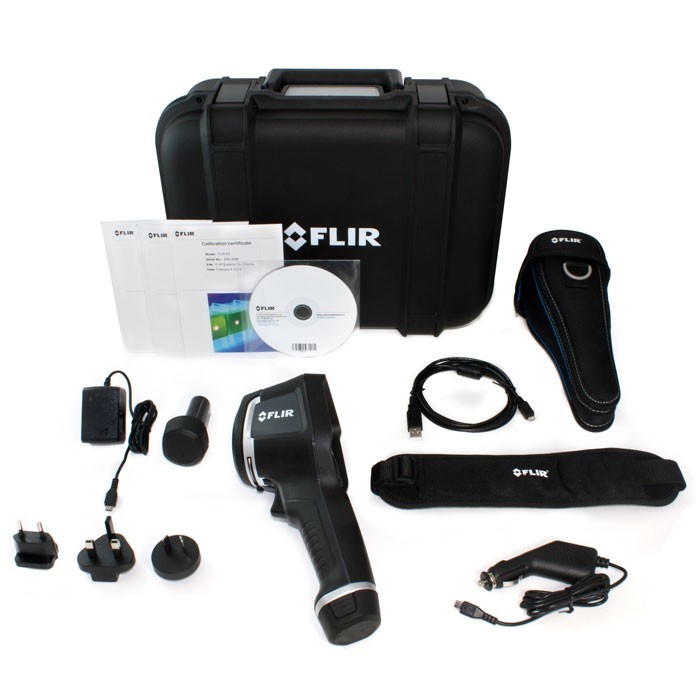

Parts included:
- FLIR E5 Thermal Camera
- Hard Transportation Case
- USB Cable
- Power Supply and Charger
- Rechargeable Battery
Product Specification
- The enhanced version of the FLIR E4 with better thermal resolution and higher thermal sensitivity
- Thermal resolution of 120 x 90 pixels - more pixel detail in every captured image
- Thermal sensitivity of <0.10°C - pinpoint smaller differences in temperature levels
- 45 x 34° field of view with minimum focus distance of 0.5m (1.6ft)
- 9Hz image frequency rate
- 3.0", 320 x 230 pixel LCD screen
- Multiple selectable image modes - choose thermal MSX, standard thermal, thermal blending or digital camera

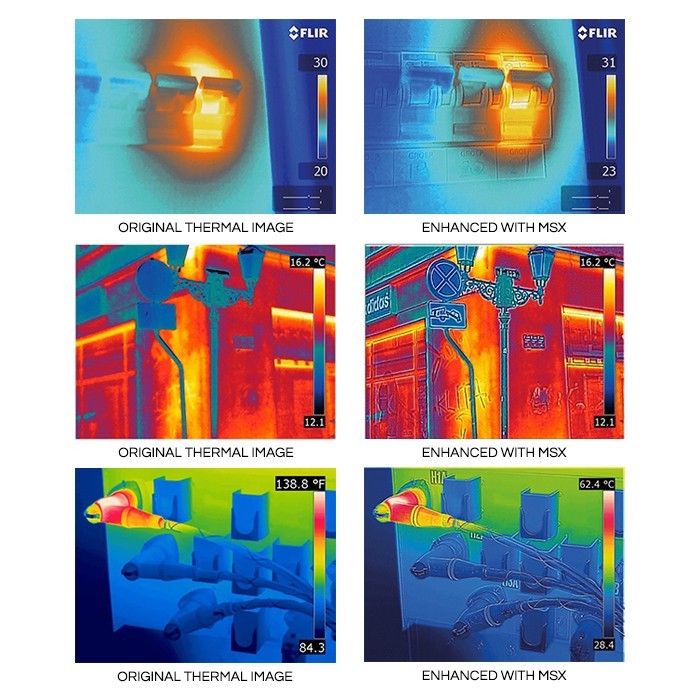

- FLIR MSX enabled - etches the detail of digital images into thermal images to improve the level of detail
- Temperature measurement range from -20 to +250°C (-4 to +482°F)
- Temperature measurement accuracy within ±2%
- Simple, point-and-shoot design with pistol-shaped grip and trigger system
- Variable emissivity from 0.1 to 1.0 to cater for different surface types
- Area box mode - overlay a box on your images to pinpoint the max and minimum temperatures within that box
- Selectable colour palettes - choose between black and white, iron and rainbow
- On board digital camera with resolution of 640 x 480 pixels
- Simple USB transfer of images to compatible devices such as a PC
- Powered by field-replaceable lithium ion rechargeable batteries
- Approximately 4 hours battery life
- Includes FLIR Tools software for interacting with images on PC (ideal for making reports)
