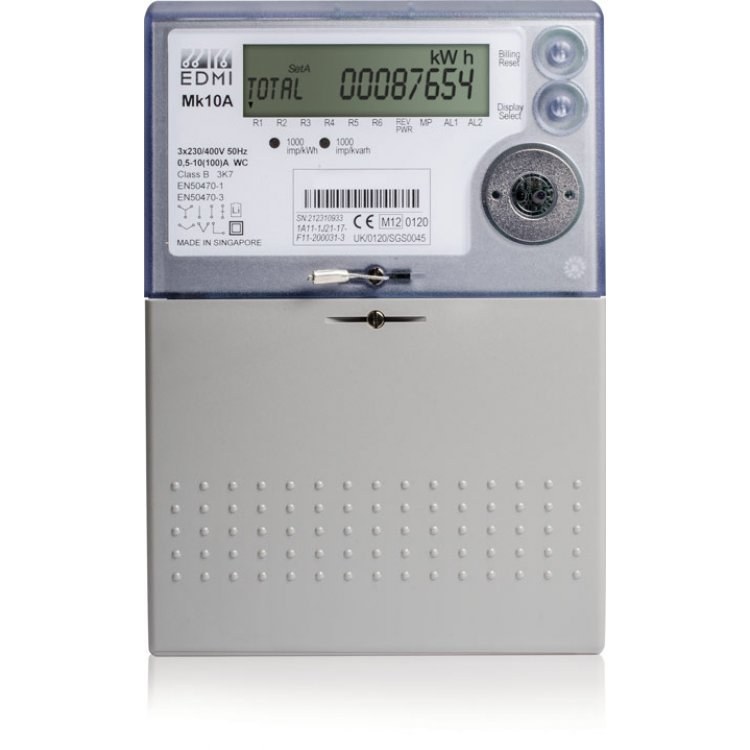

EDMI MK10A 3 Phase 5A CT Connected MID kWh Tariff meter

  • Display: 7 digit LCD display a
  • AMR via GPRS modem (automatic transmit to supply company for billing payments with 8 Tariff options)
  • High accuracy readings: Class 1 and Class 2
  • Import/Export
  • Configurable alarms
  • Dimensions: 263.5mm Height, 134mm Width and 51mm DeptH
Enquire Now

Product Details

The EDMI Mk10A is an MID Approved Code 5 compliant 3-phase kWh multi-rate tariff meter.

Display: 8plus 6-digit LCD display and AMR via GPRS modem (automatic transmit to supply company for billing payments with 8 Tariff options).

This model is a 5A Current Transformer connected meter.

Product Specification

Measurement

  • Class 1 and Class 2 (MID Class B & Class A
  • Compliance to IEC62052-11, IEC62053-21, IEC62053-23
  • Single Phase (3 Circuits)
  • Three Phase, Four Wire
  • 1 Element 4 Quadrant
  • 4 I/O ( Maximum two relay outputs)
  • THD (Total Harmonic Distortion)

Voltage & Power Supply

  • Nominal Voltage: 220V – 240V
  • Operating Range: 140V – 290V
  • Burden: < 10VA / phase @ Vn (3 Phase) (IEC52053-61 Compliant)
  • Frequency Range: 45 Hz – 65 Hz

Current

  • WC Range: 5/100A or 10/100A
  • Short time over current: 20 times Imax for 0.5 seconds
  • Burden: < 0.5 VA / phase

Environmental

  • Operating Range: -40oC to +70oC
  • Storage Range: -40oC to +85oC
  • Relative Humidity: Up to 95% non-condensing
