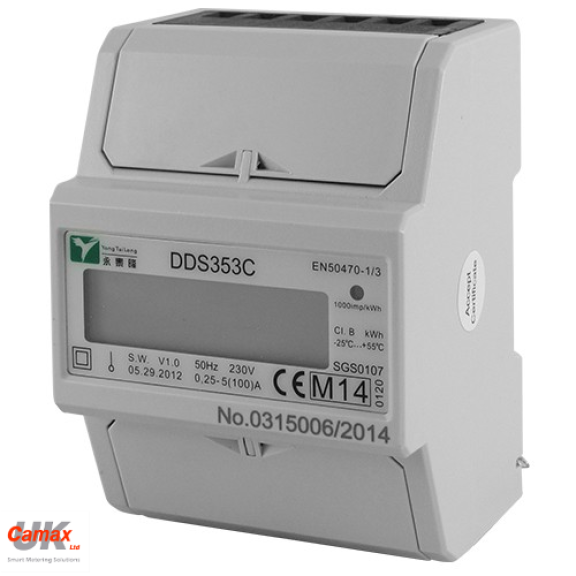

DDS353C MID Certified 100A kWh Meter

  • Housing: 4-DIN Rail Module
  • Single Phase
  • Current: 100A Direct Connected
  • Voltage: 230/240V (+/- 20%)
  • Pulse output as standard: 1000 imp/kWh
  • LCD Display: 5+2= 99
Enquire Now

Product Details

The DDS353 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (4-DIN) and on-screen kWh display (LCD).

As standard the meter's Pulse rate is set to: 1000 imp/kWh

Product Specification

  • Voltage: 230V ± 20%
  • Current: (5)100A
  •  Accuracy Class: B
  • Standard: EN50470-1 / EN50470-3
  •  Frequency: 50Hz ±10%
  •  Impulse Constant: Red LED 1000imp/kWh
  • Display: LCD 5+2= 99999.99kW
  • Power Consumption: ≤1W
  • Temperature Range: -25⁰C + 55⁰C
  • Pulse Width: 52mS
  • Max Terminal Wire: 19mm₂

Product Downloads
