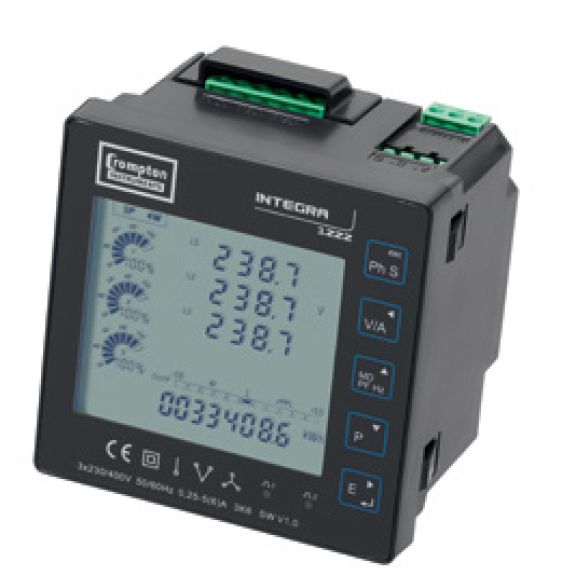

Crompton Instruments Integra 1222 Digital Multifunction Meter (INT-1222-S-01)

  • DIN 96 enclosure
  • Backlit LCD screen
  • Voltage IN-OUT connections
  • CT current measurement
  • Plug and Socket connections
  • Programmable VT, CT Ratios
  • Modbus™ RTU
  • 2 pulsed Outputs
Enquire Now

Product Details

The Crompton Instruments Integra 1222 digital, multi-function meter from TE Connectivity enables a cost-effective solution for the measurement and display of all electrical parameters.

System Connections: 3P4W, 3P3W, 1P2W

Product Specification

Input

  • Nominal Input Voltage: 100-276V AC L-N (173-480V L-L) 600 MAX
  • Nominal Input Current: 1A AC or 5A AC

Auxillary

  • Operating Range: Self Powered (From any of the three phases)
  • Supply Burden: 10VA

Accuracy

  • Voltage: 0.5
  • Current: 0.5
  • Active Power: 1.0
  • Reactive Power: 1.0
  • Apparent Power: 1.0
  • Active Energy: 1.0
  • Reactive Energy: 1.0
  • THD: 2% 63 Harmonic

Outputs:

  • Pulsed output relay (configurable) : Opto-coupled, potential-free SPST-NO contact
  • Contact rating: 2-27mA at 27V DC
  • Pulse Width: 60/100/200ms
  • Pulse rate: 0.01, 0.1, 1, 10,100 kWh/kVArh
  • Pulsed output relay (configurable): 32000IMP/kWh

Communications:

  • Modbus RTU (RS485)
  • Type: 2-Wire half duplex
  • Baud rate: 4800. 9600, 19200, 384000
  • Address: 1 to 247

Enclosure:

  • Style: DIN 96 Panel Mount
  • Dimensions: 96x96x62mm
  • Panel cut-out: 92x92mm
  • Protecting rating: IP54 Front, IP30 Rear
  • Terminals: Voltage: Shrouded screw-clamp. Current: Screw
